55" 3.5mm CCTV LCD Video Wall Manufacturer 24/7 Security Control Room Display Qtenboard
Product description:
-
Range of application:
Public Security & Law Enforcement
Transportation & Traffic Management (Airports, Railways, Highways)
Corporate Security & Enterprise Monitoring
Government & Emergency Command Centers
Technical specifications:

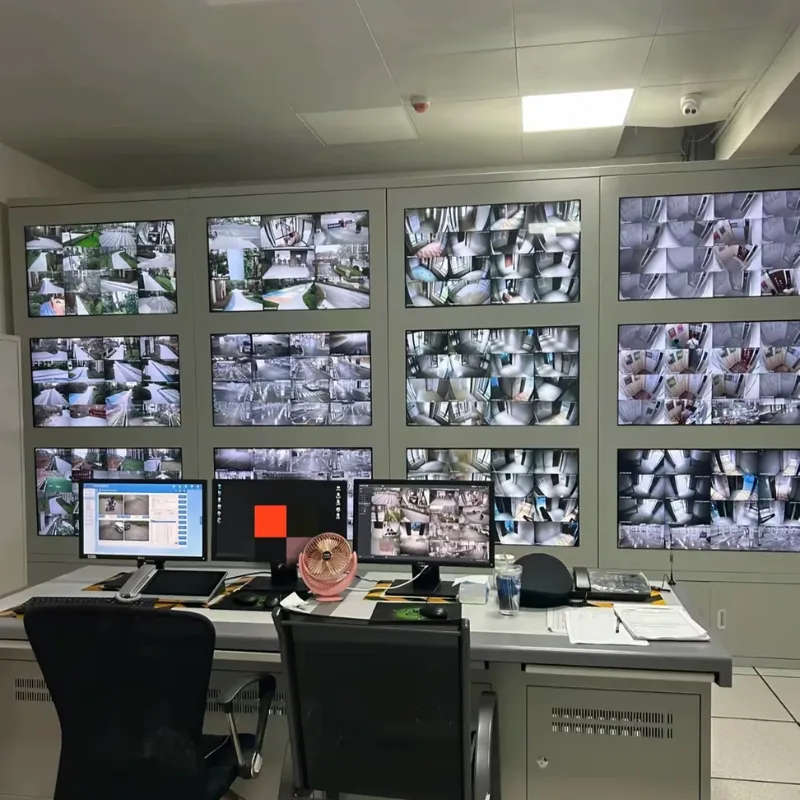

55" 3.5mm CCTV LCD Video Wall for Control Rooms — Reduce Integration Risk with Factory-Direct Supply
Deploying a video wall isn't just about buying screens. System integrators face real challenges: signal latency, bezel misalignment, long-term stability, and maintenance costs. Qtenboard provides a complete system engineering approach — from controller selection to signal architecture and installation — to minimize integration complexity and project risk.
- ✓ 330,000 m² manufacturing — consistent panel performance across large arrays
- ✓ Front-access maintenance — reduce downtime by up to 70%
- ✓ 24/7 industrial-grade reliability — built for mission-critical surveillance
- ✓ OEM / ODM / CKD / SKD — white-label support for integrators
ISO · CE · FCC · RoHS · 20+ Years Export
Solution-Oriented, Not Product-Only
Qtenboard supports LCD Video Wall projects from a system engineering perspective — treating the display as one component of a larger CCTV infrastructure.
Beyond supplying panels, we assist integrators with solution-level planning that covers:
- Control room layout — viewing distance, operator ergonomics
- Panel configuration — bezel alignment, uniform visual performance
- Controller selection — signal architecture and processing
- Installation structure — access strategy and long-term maintenance
This approach ensures the video wall operates as a stable, integrated component of the overall surveillance system — minimizing integration complexity, reducing project risk, and improving delivery efficiency.
Direct Manufacturer with Real Project Delivery Capability
330,000m² Factory · ISO-Certified · High-Capacity Manufacturing
As a direct factory, we control the full production process — from panel assembly and calibration to final quality inspection. This allows us to provide:
- Consistent panel performance across large video wall arrays
- Stable long-term supply for phased or repeat projects
- Controlled quality standards for mission-critical environments
For CCTV control rooms, where visual consistency and operational stability are essential, manufacturing control matters as much as specifications.
OEM / ODM / CKD / SKD and private-label support available for integrators and solution providers.
LCD Video Wall CCTV Projects Actually Care About
Qtenboard provides flexible customization options for different CCTV command room applications:
🎛️ Controller & System Compatibility
Built around dedicated video wall controllers, the system supports centralized signal processing and flexible screen management. When paired with media players and CMS, it enables remote content control, system monitoring, and configuration management.
⚡ Industrial-Grade 24/7 Operation
Panels are designed for continuous operation in surveillance environments where downtime, burn-in, or instability is unacceptable. 60,000-hour average lifespan.
🔧 Front Maintenance Structure
Front-access service design allows maintenance without dismantling the video wall — significantly reducing system downtime and on-site labor costs.
Centralized Management for LCD Video Wall
To accommodate different CCTV system designs, we offer three types of video wall control devices: matrix switchers (distributors), decoders, and cloud-based video wall processors.
Each option is designed for specific signal sources and system architectures — from traditional video inputs to IP-based surveillance streams. By selecting the appropriate control device, integrators can achieve efficient signal distribution, flexible screen management, and stable operation across control rooms of different scales.
☁️ Centralized Management with CMS (Optional)
When required, the system can be combined with media players and a CMS to enable centralized and remote management. The CMS serves as a management layer for configuration, system monitoring, and controlled content distribution — enhancing operational efficiency while maintaining reliability and security.
LCD Video Wall for CCTV Monitoring
LCD Video Wall for Information Display
LCD Video Wall Accessories — Complete System Ecosystem
From signal distribution to mounting and interactivity — everything you need for a complete video wall deployment.

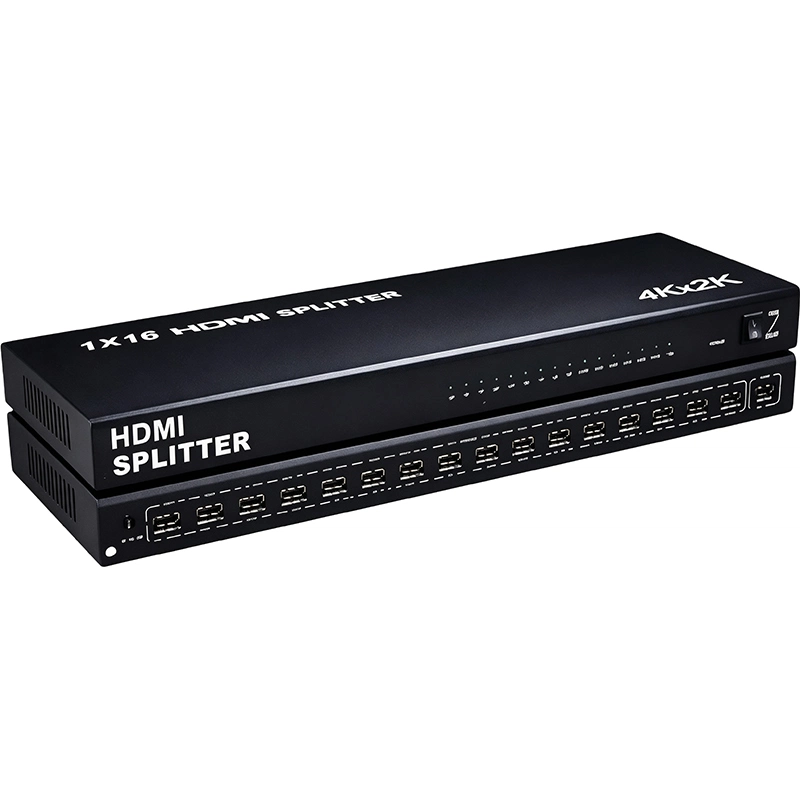

Distributor

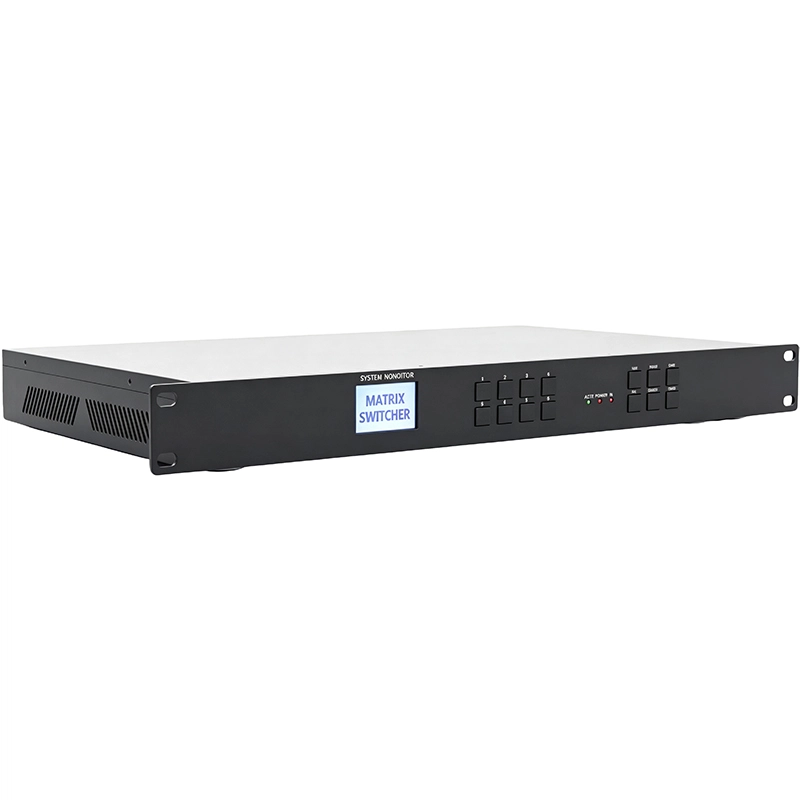

Matrix

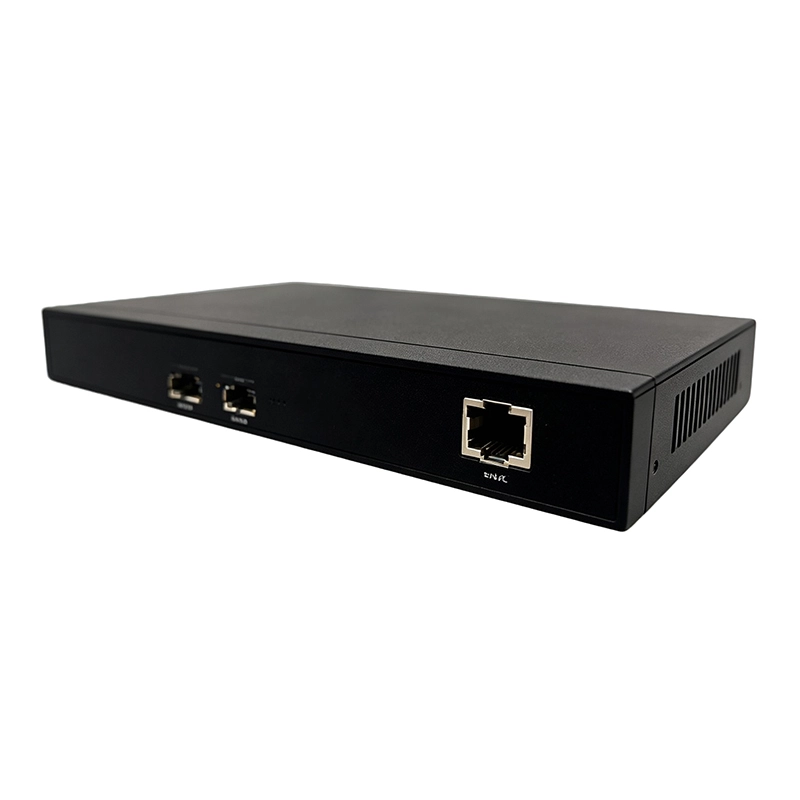

Processor

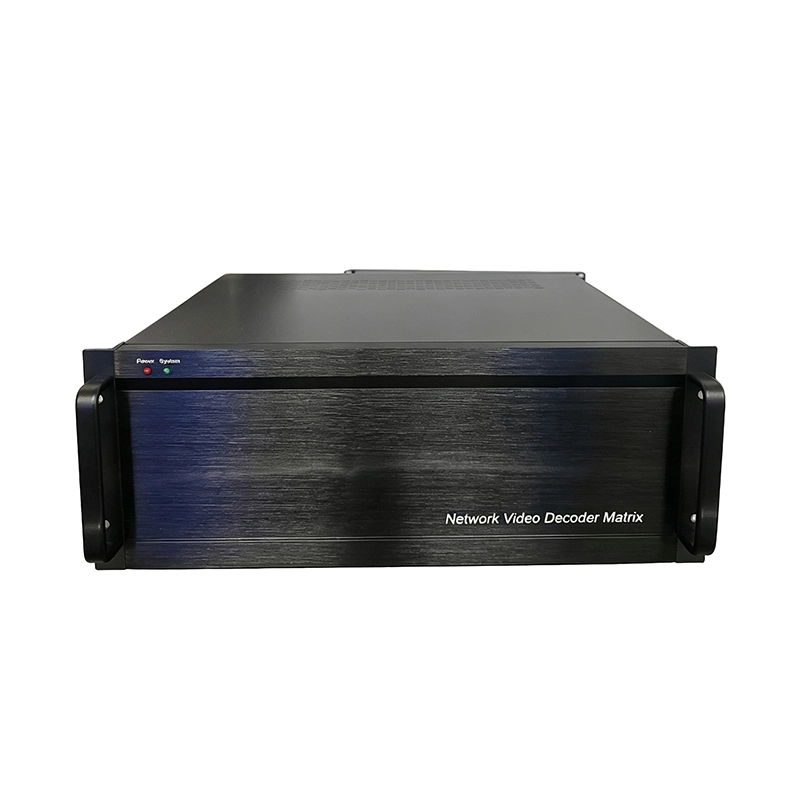

Decoder

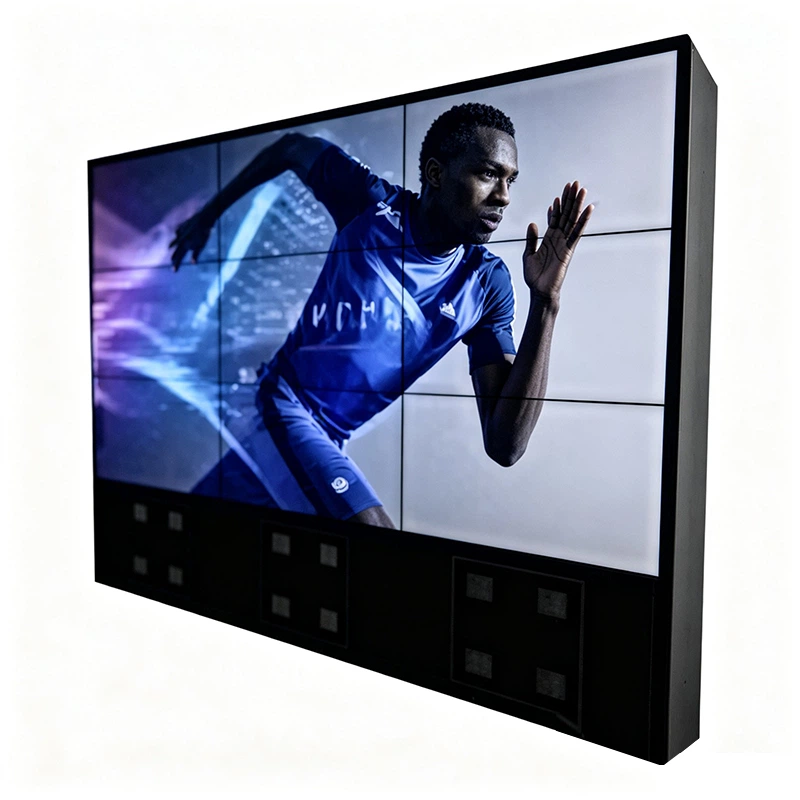

Cabinet

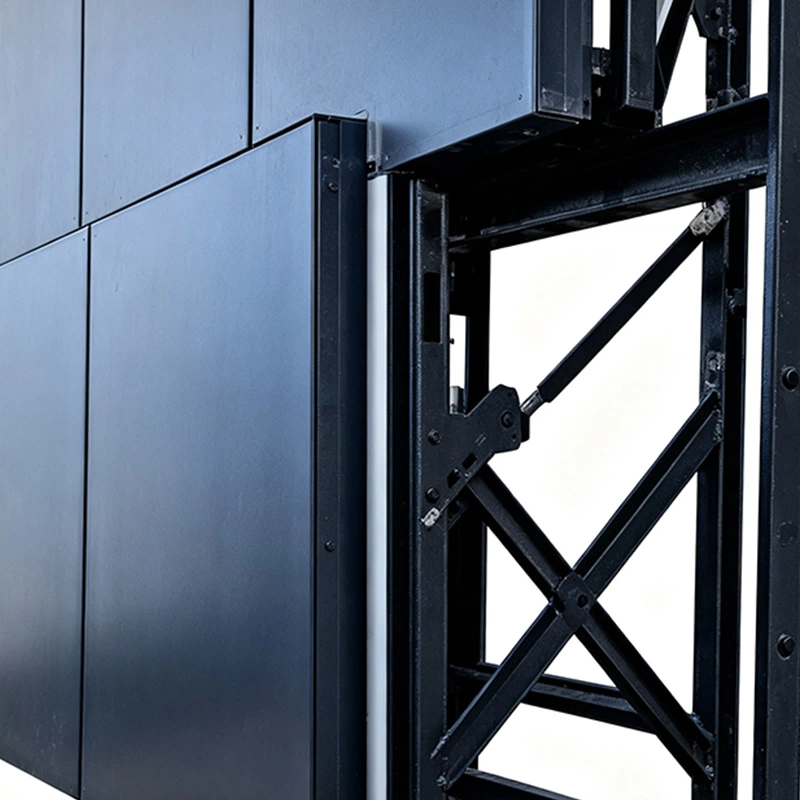

Hydraulic Stand

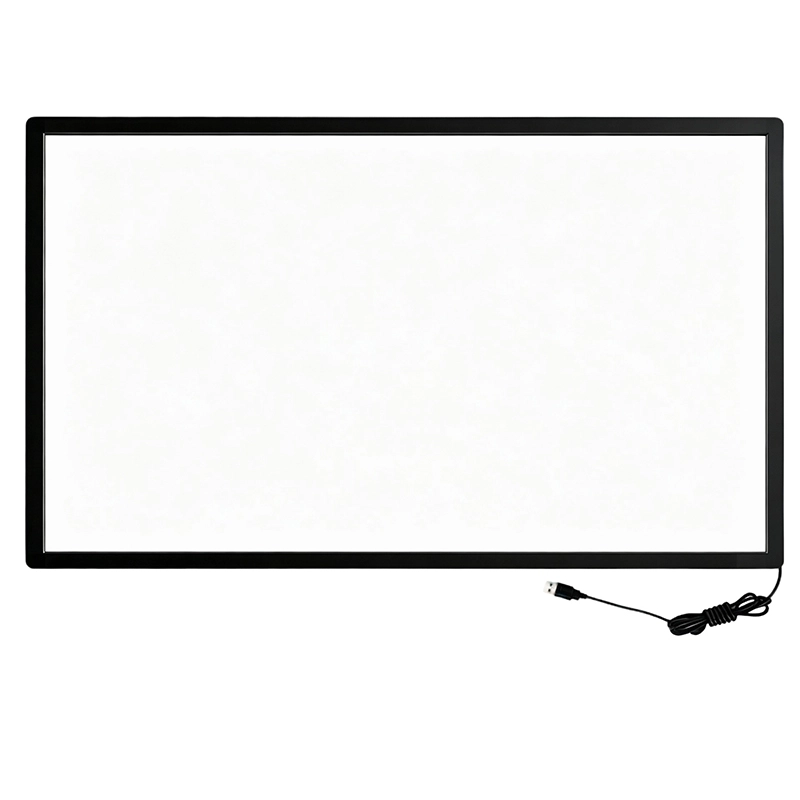

Infrared Frame

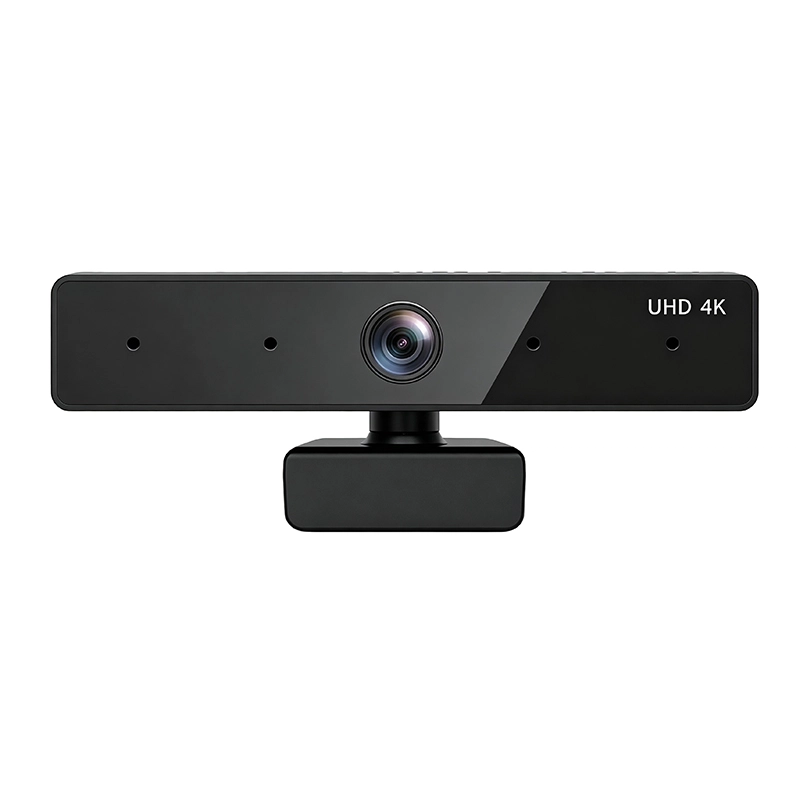

AI Conference Camera

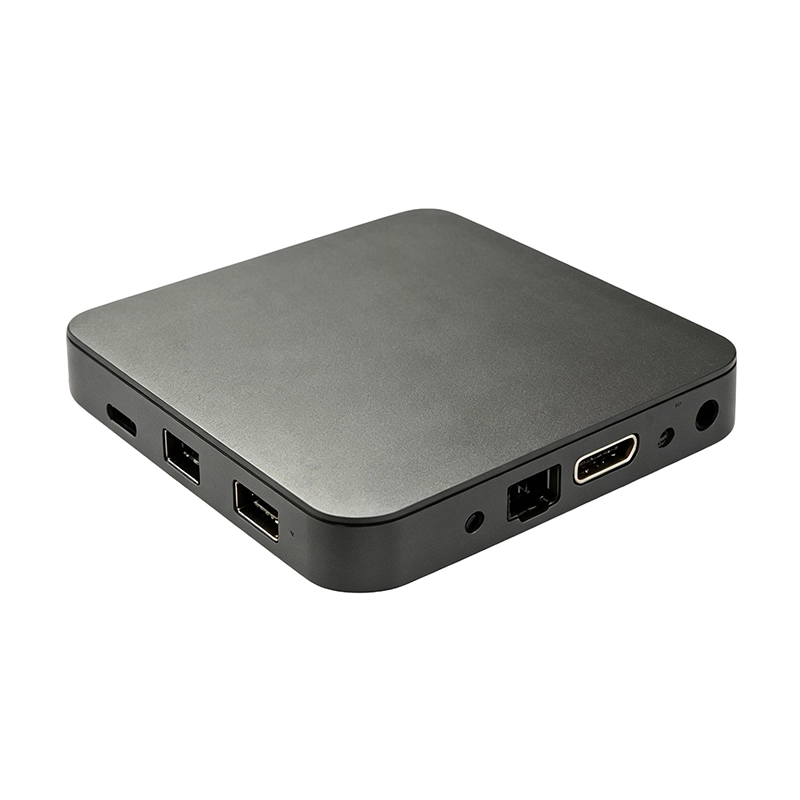

Playback Box

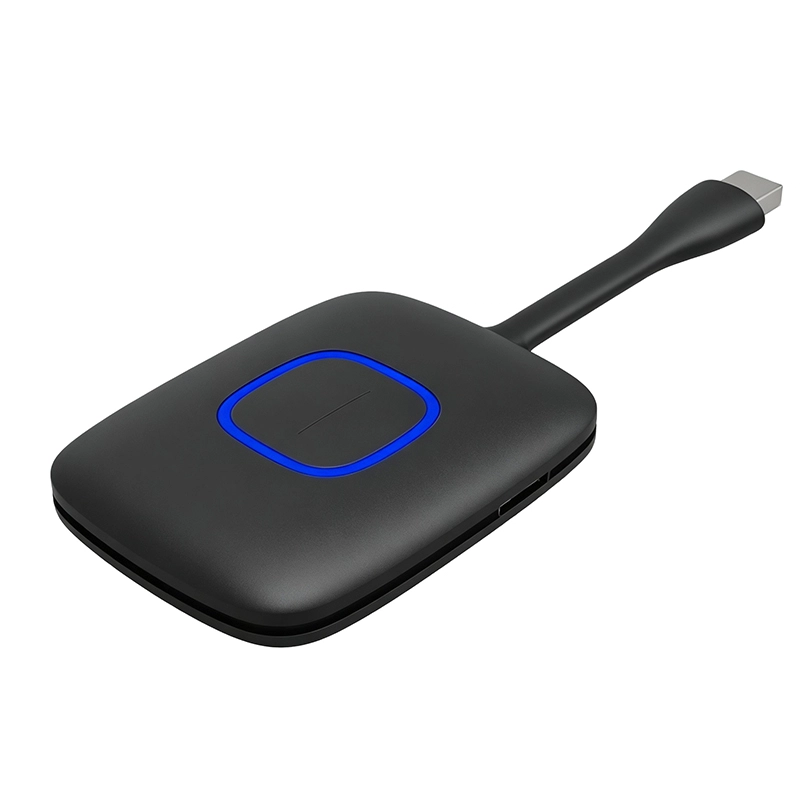

Casting Device
Which Video Wall Configuration Fits Your Control Room?
Different surveillance environments have different requirements. Here's our recommended approach based on project type.
🚔 Police & Emergency Command Centers
- Screen Size: 55" — 65"
- Bezel: 3.5mm (near-seamless)
- Brightness: 500 cd/m²
- Controller: Decoder + Matrix
- Key Feature: 24/7 reliability + low latency
→ Real-time incident monitoring requires instant signal switching and zero visual distraction
✈️ Airports & Transportation Hubs
- Screen Size: 49" — 55"
- Bezel: 1.8mm — 3.5mm
- Brightness: 700 nits (high ambient light)
- Controller: Cloud-based processor
- Key Feature: Multi-source signal + remote management
→ High ambient light environments require higher brightness and remote monitoring capability
🏢 Corporate Security & Enterprise NOCs
- Screen Size: 43" — 55"
- Bezel: 3.5mm (cost-effective)
- Brightness: 500 cd/m²
- Controller: Matrix switcher
- Key Feature: Cost-efficiency + ease of maintenance
→ Balance between performance and budget with front-access maintenance
Not sure which configuration fits your project? Talk to our engineering team →
Real Case: 20+ Control Room Deployments Across 3 Countries

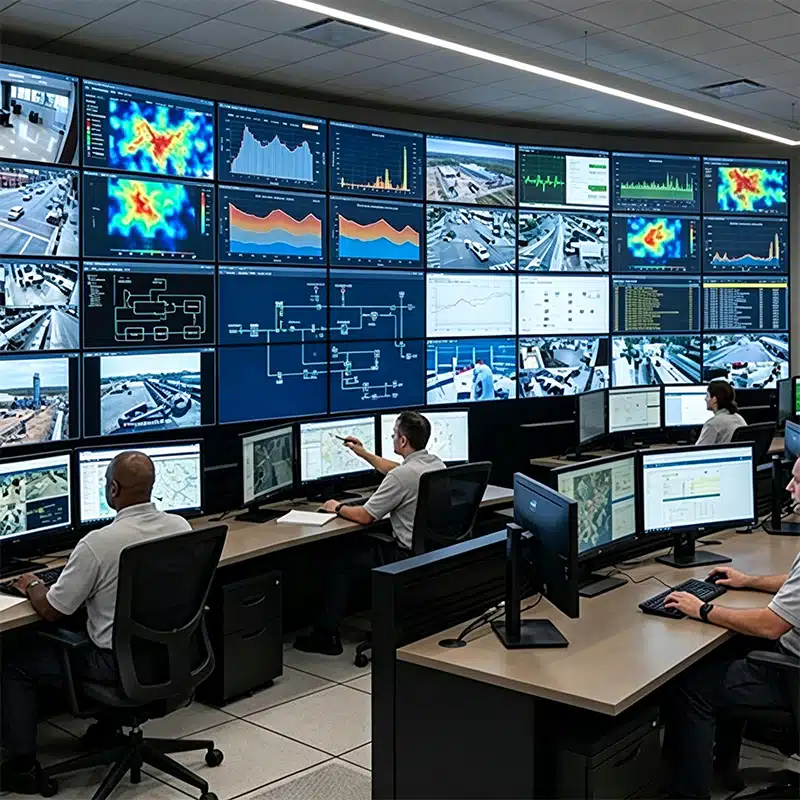

National Police Command Center — 55″ 3.5mm Video Wall
Challenge: A Latin American national police force needed to consolidate feeds from 2,000+ surveillance cameras across 12 cities into a single command center. Signal latency, panel consistency, and long-term maintenance were critical.
Solution: Qtenboard deployed a 3×3 array of 55″ 3.5mm LCD panels with dedicated decoders and a cloud-based CMS. Front-access maintenance was prioritized for rapid on-site servicing.
- 📉 40% reduction in signal switching latency
- ⏱️ Zero unscheduled downtime in first 12 months
- 🔧 70% faster maintenance interventions (front-access design)
- 🌐 Remote monitoring enabled for 24/7 support from Qtenboard engineering
Qtenboard LCD Video Wall — 20+ Years of Export Experience
With over 20+ years of export experience, our video wall solutions have been delivered to more than 100 countries and regions, serving major CCTV monitoring rooms, transportation command centers, police headquarters, airports, and smart city projects — where continuous operation and system stability are critical.
📋 Pre-Sales Technical Consultation
Solution design, controller selection, screen layout planning, system architecture definition
⚙️ Configuration & Integration Support
Signal mapping, control logic, compatibility between controllers, decoders, and panels
📦 Export & Logistics Coordination
International shipping, packaging standards, documentation for overseas projects
🏷️ OEM & Private Label Support
Flexible branding and product customization for integrators and solution providers
🛠️ After-Sales & Long-Term Cooperation
Structured support for troubleshooting, maintenance guidance, project continuity
✨ Qtenboard – Powering Global CCTV Monitoring with Reliable Visual Solutions
Technical Specifications — 55″ 3.5mm LCD Video Wall Reference Model
Full engineering specs for project evaluation. Other sizes (43″, 46″, 49″, 65″, 75″) and bezel options (1.7mm, 1.8mm, 0.88mm, 0mm) available — request custom datasheet.
📺 Display Parameters
| Screen Size | 43″ / 46″ / 49″ / 55″ / 65″ / 75″ |
| Splicing Gap | 8mm / 3.5mm / 1.8mm / 1.7mm / 0.88mm / 0mm |
| Backlight | LED |
| Aspect Ratio | 16:9 |
| Max Resolution | 1920×1080 (2K) |
| Contrast Ratio | 4500:1 |
| Brightness | 500 cd/m² (700 optional) |
| Active Area | 1018.08mm(H) × 572.67mm(V) |
| Color Saturation | 97% |
| Response Time | 6.5ms |
| Viewing Angle | 178° |
| Service Life | ~60,000 hours |
| Panel Color | Black / Custom |
⚙️ Signal & Control
| Signal Format | PAL/NTSC adapting 480I, 576I, 720I, 720P, 1080I, 1080P |
| Input Interfaces | Power, DVI, HDMI, USB |
| Control Port | Input: RS232 · Output: RS232×2 |
| Panel Control | Infrared remote control |
| Language | English / Chinese · Multilingual optional |
🔧 Mechanical & Environmental
| Unit Dimension | 1022(L) × 576.6(H) × 70.1(D) mm |
| Unit Weight | ~15 kg (excluding accessories) |
| Power Consumption | Operating ≤180W · Standby ≤3W |
| Installation | Cabinet · Wall hanging · Ceiling |
| Operating Temp | 0°C ~ 50°C |
| Operating Humidity | 20% ~ 80% (non-condensing) |
| Storage Temp | -10°C ~ 60°C |
| Storage Humidity | 5% ~ 95% (non-condensing) |
| Accessories Included | Manual, Power cable, Certification, Warranty card |
Frequently Asked Questions — System Integrators & Project Managers
Ready to Deploy Your CCTV LCD Video Wall Project?
Get a customized quote for your screen configuration, controller selection, and integration requirements.
📧 info@qtenboardglobal.com · 📞 +86 18124715048
