Smart Digital Menu Boards for Restaurants – Boost Sales
Product description:
Qtenboard digital menu screens is an intelligent display solution specifically designed for the catering, retail and service industries.
Digital menu signage features high-definition LCD screens and a remote content management system, enabling flexible menu updates, dynamic promotional displays and multimedia playback.
This solution helps businesses enhance their brand image and customer experience.
-
Range of application:
Technical specifications:
Qtenboard - The Top Hardware Supplier for Digital Menu Board in China
Qtenboard Digital Menu Board
Dual Manufacturing Hubs in Shenzhen & Guangzhou — Qtenboard operates two advanced production facilities to guarantee consistent quality, reliable supply, and scalable manufacturing for global partners.
- 330,000 m² Integrated Manufacturing Space
- Automated & Semi-Automated Production Lines
- Daily Output Capacity up to 200 Units
- 48-Hour Continuous Aging & Stability Testing
- Global Compliance Certifications — CE · FCC · RoHS · PSE · UL (optional)
- Flexible Production & OEM/ODM Supporte
Core Features
Product Highlights
OEM Option
Technical Specifications
The following technical parameters are based on a 32-inch QM-3215GPW model. If you need technical parameters for other sizes, please contact Qtenboard.| Display parameter | |
| The following technical parameters are based on a 32-inch model. If you need technical parameters for other sizes, please contact Qtenboard. | |
| Brand | Qtenboard |
| Model | QM-3215GPW |
| Screen Size | 32inch |
| Resolution | 1920*1080，2K； 3840*2160，4K. |
| Angle of view | 178° |
| Contrast ratio | 3000:1 / 4500:1 |
| Display size | 714.2×402.8mm（H×V） |
| Display rate | 16:9 / 9:16 |
| Back light | LED |
| Brightness | ≥300 / 400 / 500 cd/㎡ |
| Refresh rate | 60 / 120 HZ |
| Color | 16.7M(8-bit) / 1.07B (10-bit) |
| System configuration | |
| Operation system | Android |
| Version | 9.0 / 11.0 / 13.0 / 14.0 / 16.0 |
| CPU | Quad core A53, Main frequency up to 1.9GHz |
| GPU | Mali T450 |
| RAM | 1 / 2 / 4 /8 GB |
| Storage memory | 8 / 16 / 32 / 64 / 128 GB |
| interface | HDMI In*1, USB2.0*2, TF card*1, RJ45*1 |
| Audio interface | 3.5mm *1 |
| Network | 1pc, 10M/100M/1000M Adaptive Ethernet |
| WIFI & Bluetooth | Built in WIFI（2.4G/5G single-signal）& BT 4.2 / 5.0 / 5.4 |
| 3G/4G | Optional |
| System Function | |
| Decoding Capability | Supports 2/4K video and picture decoding and playback |
| Software application | Support to install the third-party software |
| Language | English etc language |
| Boot Animation | Support to customize |
| Infrared remote control | Operate system by remote control |
| Audio function | Support left/right channel output,built-in double 8Ω power amplifier |
| Power-on/off | Remote control/timing/network wake-up/self-start |
| System authorization | Allow root permission and customize software development |
| Mouse mode | support wired/wireless mouse or use keyboard |
| System update | Support local and remote upgrade |
| Play mode |
Audio：MP3,WMA,WAV, APE, FLAC, AAC, OGG,M4A,3GPP etc Picture：JPG、BMP、PNG etc Video：AVI，rm，rmvb， MKV，WMV，MOV，MP4 etc |
| Typing | Standard Android keyboard as default,can install the third party typing |
| More functions | follow instruction manual/video or contact supplier |
| Software function（CMS Optional） | |
| Background support | Web/mobile IE（local network/WAN） |
| Play mode | Networking/standalone |
| Play support | video/picture/subtitles/PPT/web/weather/clock etc mixture to play |
| Smart splicing | support custom playing modes to splice as setting |
| Timing function | support to set playing custom program in time period |
| Terminal administration | Administrator can create and modify account for level-to level administration |
| More function | follow instruction manual/video or contact supplier |
| Machine parameter | |
| Color | Black / White / Others |
| Frame material | Aluminum(oxidized wire drawing) |
| Body Material | Metal cold rolled steel plate (metal coating) |
| Surface material | 3mm tempered glass(physical) |
| Product size | 1246.6*717.4*60.1mm (For reference only) |
| Packing size | 1325*135*855mm(For reference only) |
| Packing material | Neutral carton / Wooden frame / Wooden box |
| Net/gross weight | 30KG/35KG (For reference only) |
| Install ways | Mount-on wall/Embedding/Hang/Bracket |
| Electrical features | |
| Scenarios | indoor |
| Rated Voltage | AC110-220V |
| Stand by power | ≦0.5W |
| Rated power | ≦80W |
| Suitable Environment | temperature‐0℃~55℃/humidity 10%RH~90%RH |
| Storage Environment | temperature‐5℃~60℃/humidity 10%RH~90%RH |
Application

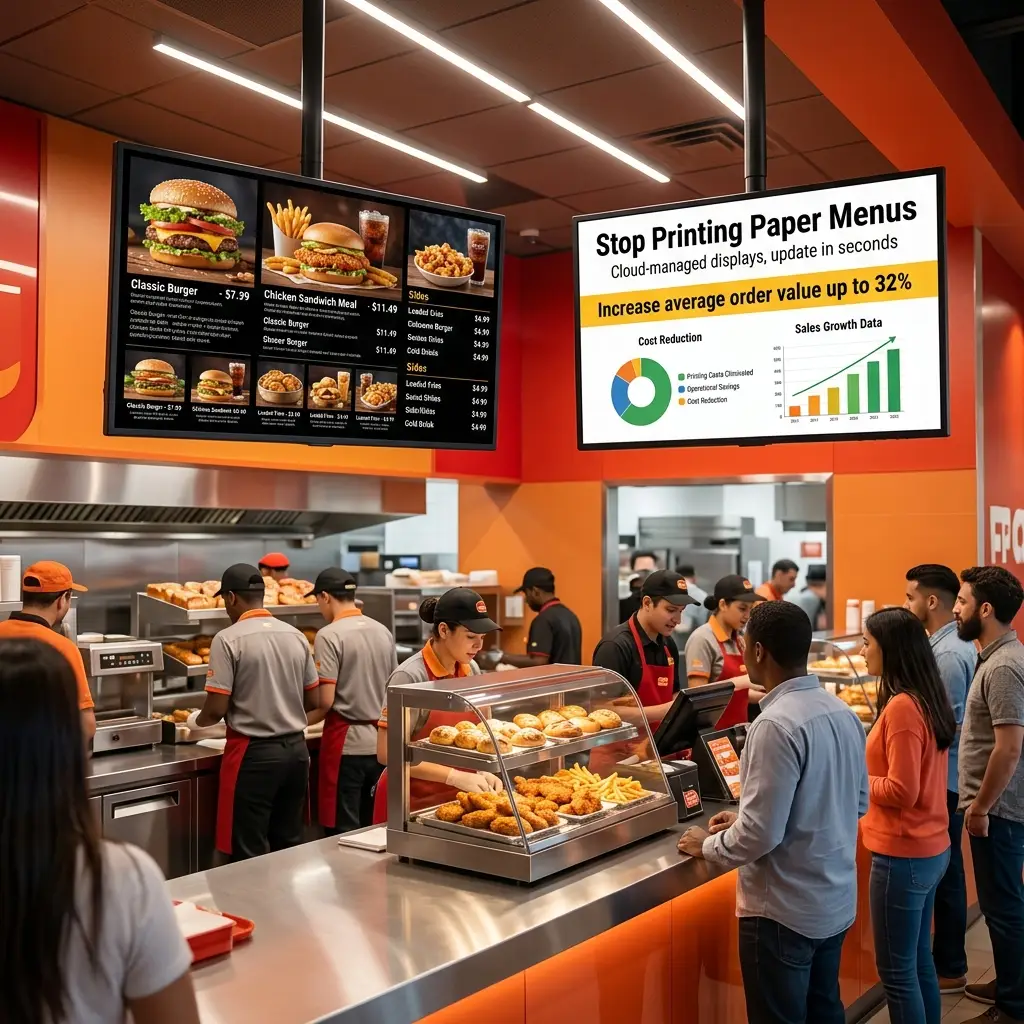

Perfect for fast-food counters and cafes to showcase daily specials and combos.
Great for coffee shop self-service kiosks to guide customers and speed up ordering.
Ideal for chain restaurants to manage menus across multiple locations efficiently.
OEM/ODM Customization Capabilities
| Feature | Description |
|---|---|
| Brand Logo & Boot Animation | Personalize your product with custom logos and startup animations for full brand identity. |
| UI/OS Deep Customization | Tailor system interface, themes, and functionality to match your brand’s unique requirements. |
| Chassis & Mold Modification | Modify device enclosures or design new molds for differentiated product appearance. |
| Packaging Design | Custom packaging to suit your branding and global shipping needs. |
| SN Tracking & Batch Production | Each unit tracked with a unique serial number to ensure quality and manage after-sales efficiently. |
| White Label Services | Offer products ready to market under your own brand name. |
| CKD/SKD Supply Capability | Flexible shipment options: complete, semi-knocked down, or fully assembled units. |
| Software Development & SDK/API Support | Integrate third-party applications or develop proprietary software to meet specific project needs. |
Factory Overview
Factory Entrance — Modern and spacious facility designed for high-efficiency production.
Production Line — Fully automated assembly lines for consistent quality output.
Quality Control — Rigorous testing ensures reliable products for global clients.
Warehouse & Logistics — Organized storage and efficient shipping for worldwide distribution.
Global Cases
USA — Hotel Lobbies & Concierge Desks — Display dining menus and guest information in high-traffic areas.

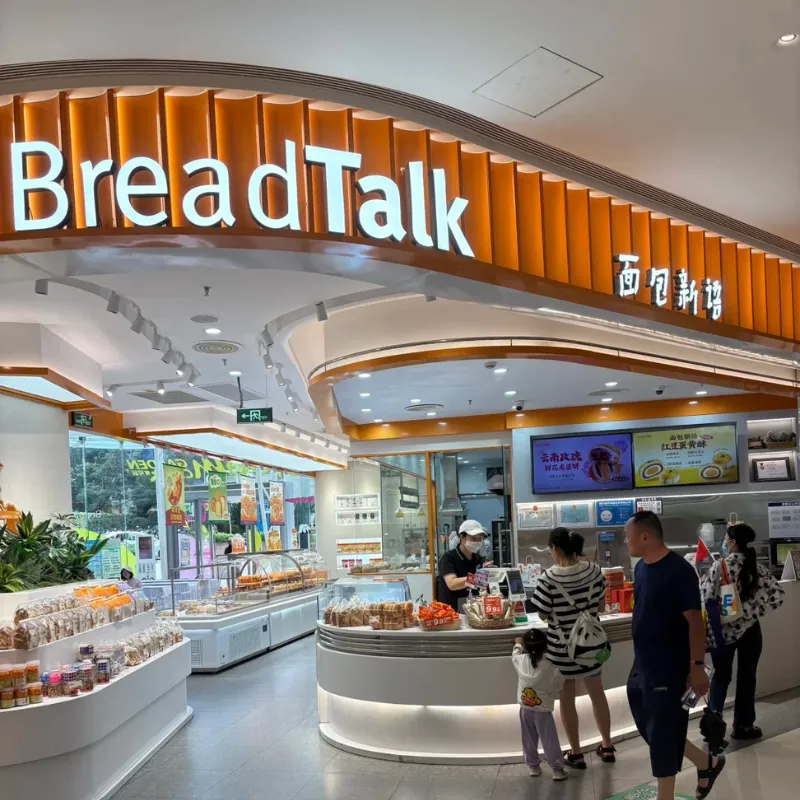

France — Bakeries & Patisseries — Highlight daily fresh pastries and limited-time creations dynamically.
Germany — Airports & Transportation Hubs — Present food options, schedules, and service updates in real time.
4.UK — Bars & Lounges — Feature cocktail menus, happy hour specials, and events visually.
Italy — Fine Dining Restaurants — Showcase gourmet dishes and wine pairings elegantly.
South Korea — Bakeries & Dessert Shops — Highlight specialty cakes, drinks, and limited editions.
Brazil — Cinemas & Entertainment Complexes — Present snack menus, combo deals, and promotional offers.
Spain — Tapas Bars & Cafeterias — Showcase daily specials and promotional combos.
Denmark — Ice Cream & Dessert Shops — Highlight limited-time flavors and promotions visually.
End-to-End Support for Global Brand Partners
Qtenboard provides a complete pre-sales and after-sales service system, ensuring stable long-term cooperation and smooth project delivery for international brands and distributors.
Pre-Sales Support
- Dedicated Account Manager — One-on-one project follow-up, requirement analysis, and solution recommendation.
- Technical Consultation — Professional guidance on product selection, system configuration, and compatibility.
- Sample & Testing Support — Rapid sample delivery, testing assistance, and certification guidance.
After-Sales Support
- 24/7 Technical Support — Fast-response global support through email, WhatsApp, and online platform.
- Remote Technical Assistance — Firmware debugging, CMS configuration support, and remote troubleshooting.
- SN Tracking & Batch Management — Each unit is registered for traceability, warranty tracking, and issue diagnosis.
- System Remote Upgrade (OTA) — Real-time firmware updates and feature enhancements via cloud.
- Spare Parts Stock & Quick Replacement — Sufficient inventory prepared to ensure timely shipment and maintenance.
- Global Shipping & Logistics Experience — Expertise in packaging, export documentation, and long-distance transportation for digital signage.
