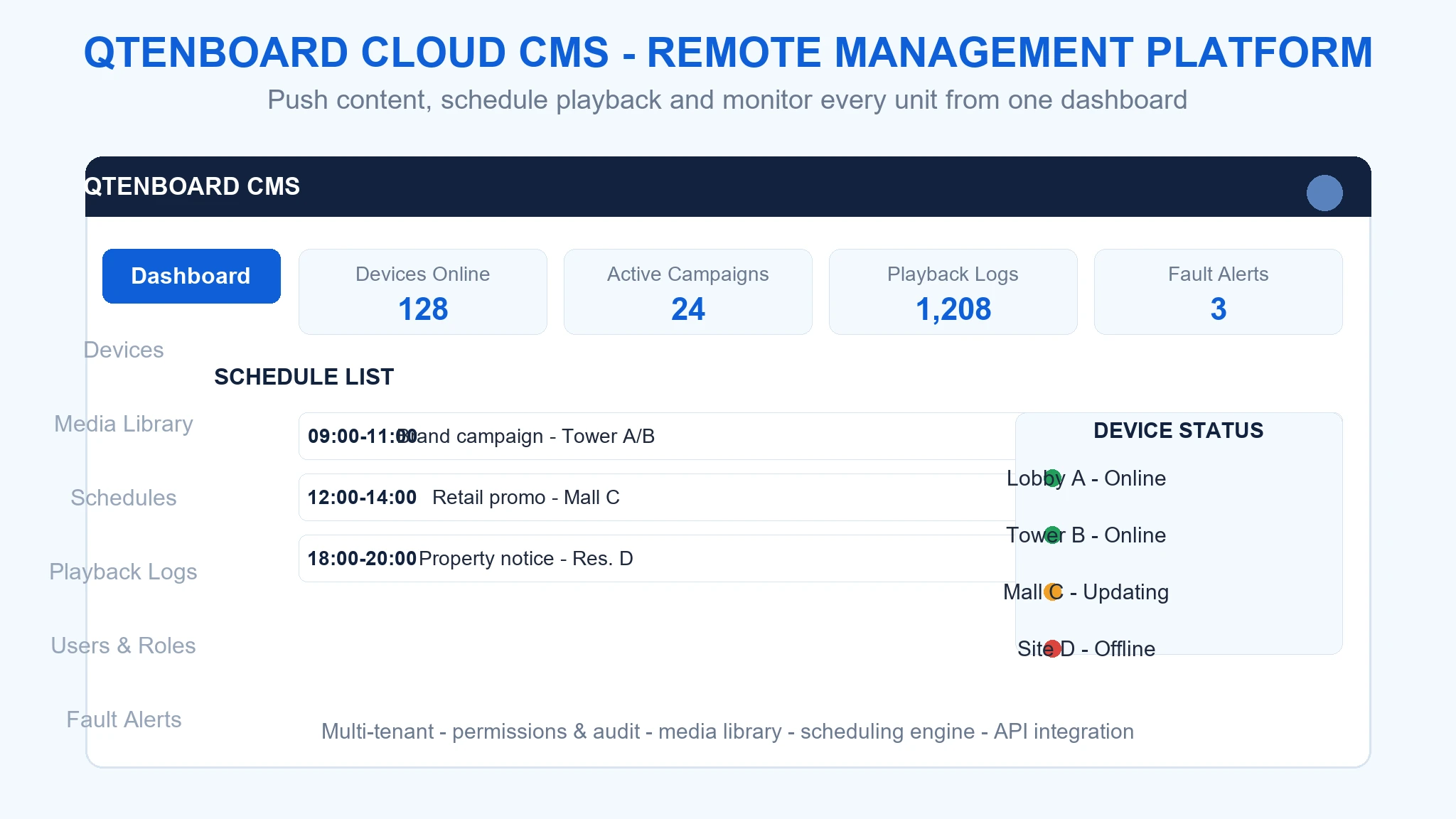

CHT CMS Content Management
Supports remote content publishing, scheduling, and centralized device management,
allowing fast updates and efficient control of elevator digital signage.

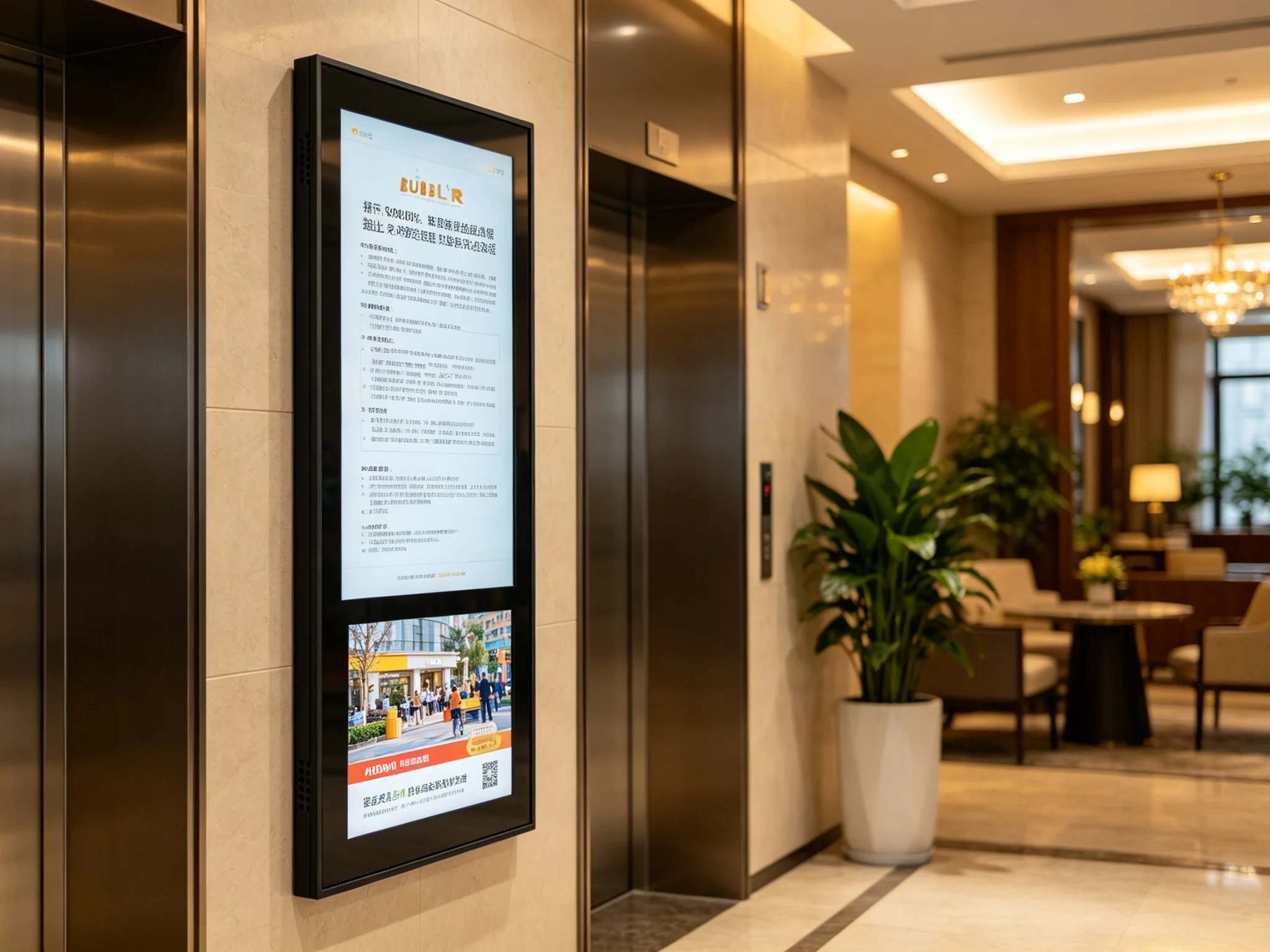

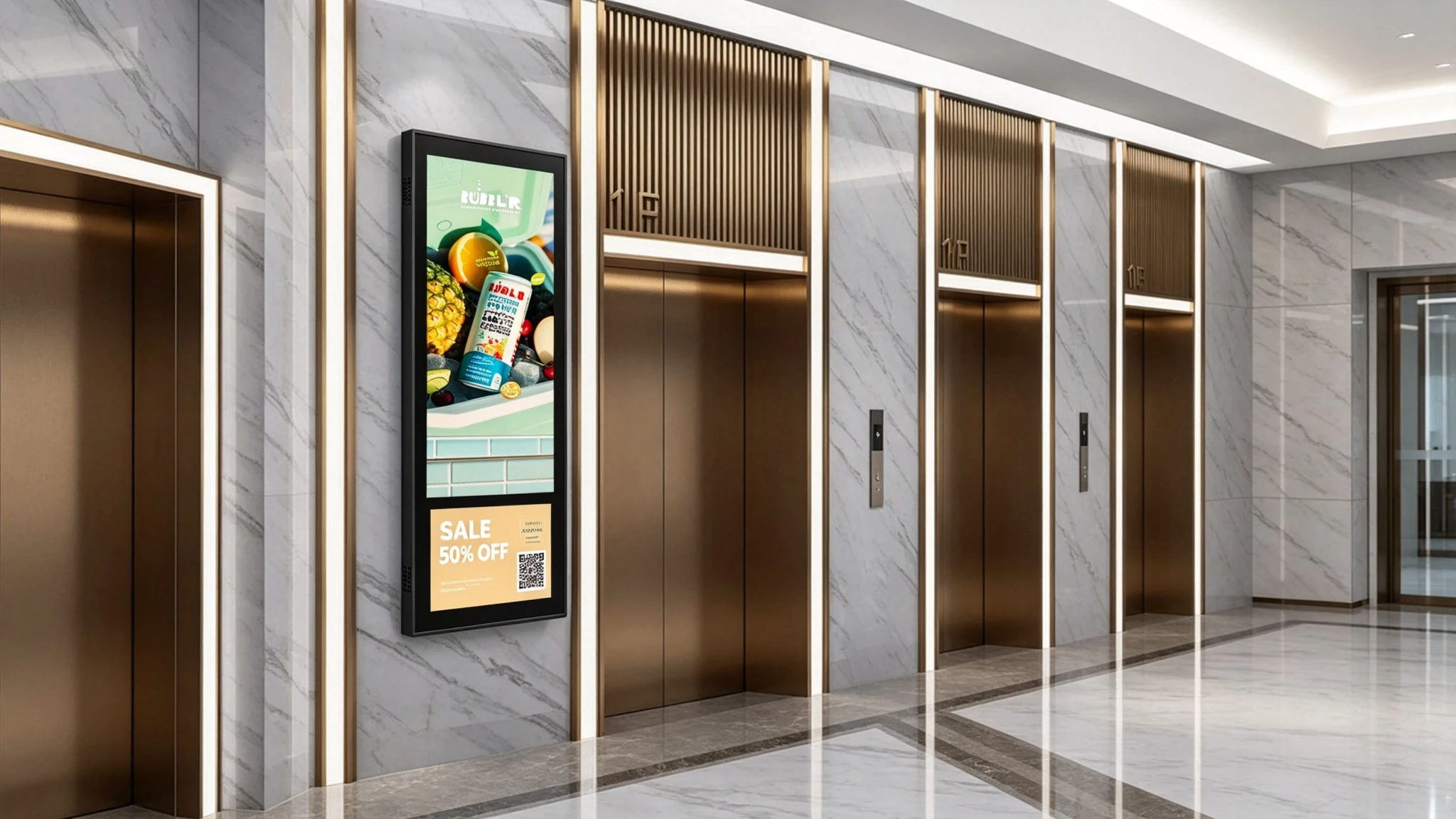

This elevator digital signage display is designed for high-traffic commercial environments such as office buildings, hotels, shopping malls, and residential towers. Featuring a slim, wall-mounted structure, it fits perfectly inside elevator cabins without occupying valuable space. The built-in Android system supports stable 24/7 operation and remote content management through a CMS platform, making advertising updates fast and efficient. With multiple screen sizes available, the display delivers clear, vivid visuals for ads, announcements, and branding messages. It is an ideal solution for property managers, advertisers, and media operators looking to maximize exposure in confined elevator spaces.
Qtenboard Digital Signage
Dual Manufacturing Hubs in Shenzhen & Guangzhou — Qtenboard operates two advanced production facilities to guarantee consistent quality, reliable supply, and scalable manufacturing for global partners.
| Display parameter | |
| The following technical parameters are based on a 32-inch model. If you need technical parameters for other sizes, please contact Qtenboard. | |
| Brand | Qtenboard |
| Model | QM-3221FZ |
| Screen Size | 32 inch |
| Resolution | 1920*1080, 2K; 3840*2160, 4K.(Optional) |

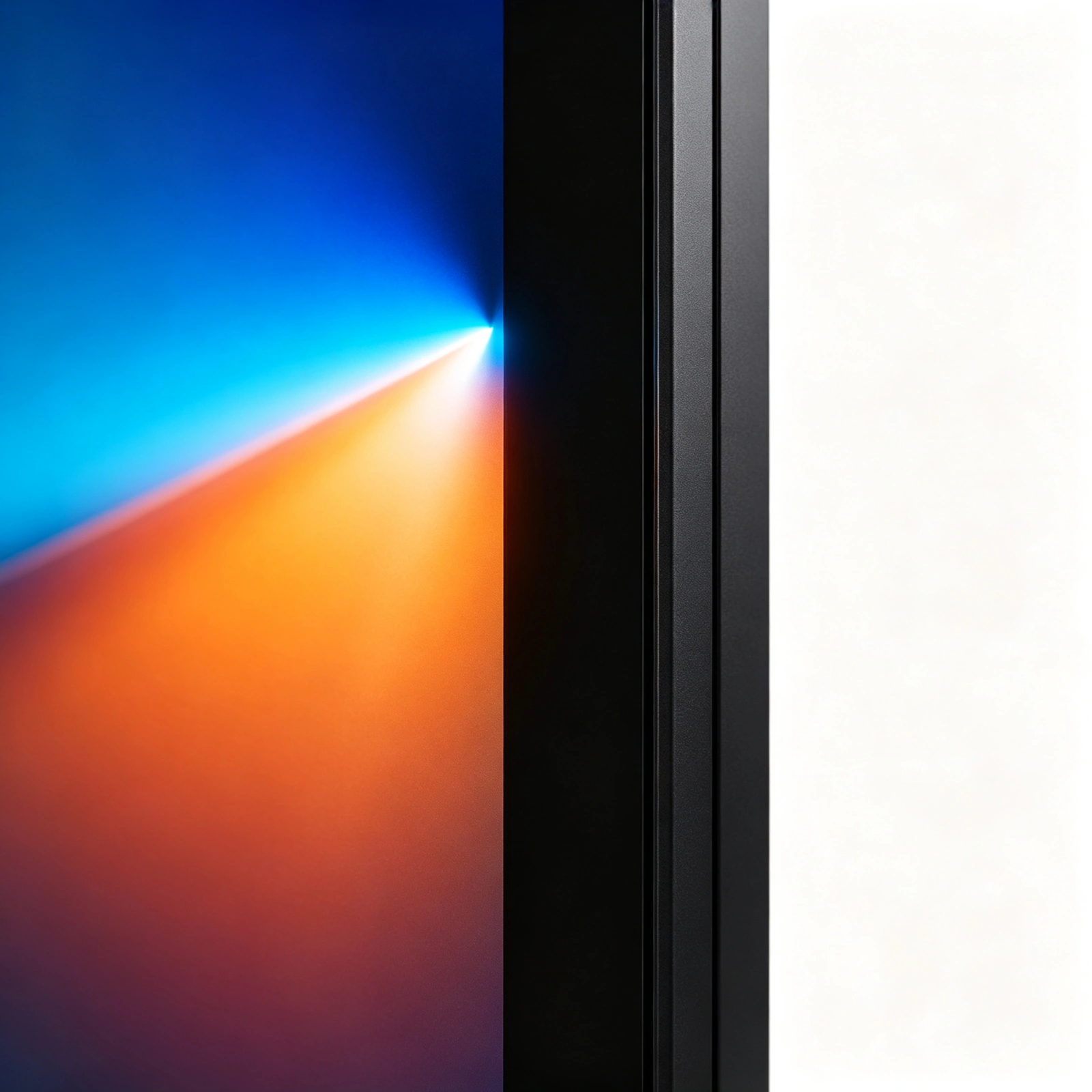

| Angle of view | 178° |
| Contrast ratio | 3000:1 / 4500:1 |
| Display rate | 16:9 / 9:16 |
| Back light | LED |
| Brightness | ≥300 / 400 / 500 cd/㎡ |
| Refresh rate | 60 / 120 HZ |
| Color | 16.7M(8-bit) / 1.07B (10-bit) |
| System configuration | |
| Operation system | Android |
| Version | 9.0 / 11.0 / 13.0 / 14.0 / 16.0 |
| CPU | Quad/Octa-core A55, Quad-core A53+A73,Hybrid Quad A53 + A72 |
| GPU | Mali-G31 |
| RAM | 1 / 2 / 4 /8 GB |
| Storage memory | 8 / 16 / 32 / 64 / 128 GB |
| Interface | HDMI*1(2.1 4kx2k@60Hz input) USB*2 |
| Audio interface | 3.5mm ear jack*1 |
| Network | 1pc, 10M/100M/1000M Adaptive Ethernet |
| WIFI & Bluetooth | Built in WIFI（2.4G/5G single-signal）& BT 4.2 / 5.0 / 5.4 |
| 3G/4G | Choose to install |
| System Function | |
| Decoding Capability | Supports 2/4K video and picture decoding and playback |
| Software application | Support to install the third-party software |
| Language | English etc language |
| Boot Animation | Support to customize |
| Infrared remote control | Operate system by remote control |
| Audio function | Support left/right channel output,built-in double 8Ω power amplifier |
| Power-on/off | Remote control/timing/network wake-up/self-start |
| System authorization | Allow root permission and customize software development |
| Mouse mode | Support wired/wireless mouse or use keyboard |
| System update | Support local and remote upgrade |
| Play mode | Audio: MP3, WMA, WAV, APE, FLAC, AAC, OGG, M4A,3GPP etc Picture: JPG, BMP, PNG etc Video: AVI, rm, rmvb, MKV, WMV, MOV, MP4 etc |
| Typing | Standard Android keyboard as default,can install the third party typing |
| More functions | Follow instruction manual/video or contact supplier |
| Software function（CMS Optional） | |
| Background support | Web/mobile IE（local network/WAN） |
| Play mode | Networking/standalone |
| Play support | Video/picture/subtitles/PPT/web/weather/clock etc mixture to play |
| Smart splicing | Support custom playing modes to splice as setting |
| Timing function | Support to set playing custom program in time period |
| Terminal administration | Administrator can create and modify account for level-to level administration |
| More function | Follow instruction manual/video or contact supplier |
| Machine parameter | |
| Color | Black / White / Others |
| Frame material | Aluminum profile |
| Body Material | Hardware cold-rolled steel plate (Metal spraying) |
| Surface material | 3mm tempered glass (Physical) |
| Packing material | Neutral carton / Wooden frame / Wooden box |

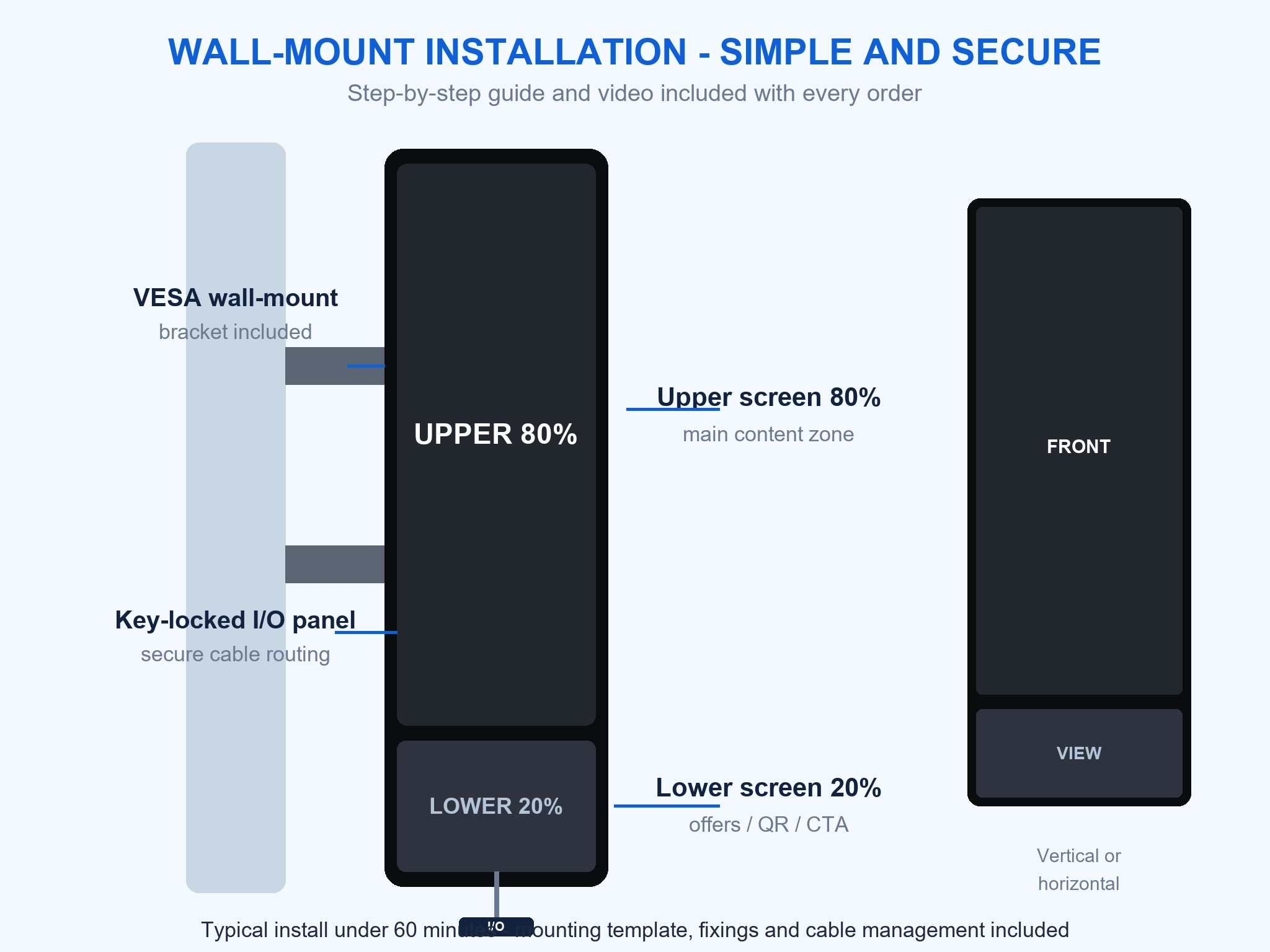

| Install ways | Mount-on wall/Embedding/Hang/Bracket |
| Electrical features | |
| Scenarios | Indoor |
| Rated Voltage | AC110-220V |
| Stand by power | ≦1W |
| Rated power | ≦85W |
| Suitable Environment | Temperature‐0℃~55℃/humidity 10%RH~90%RH |
| Storage Environment | Temperature‐5℃~60℃/humidity 10%RH~90%RH |

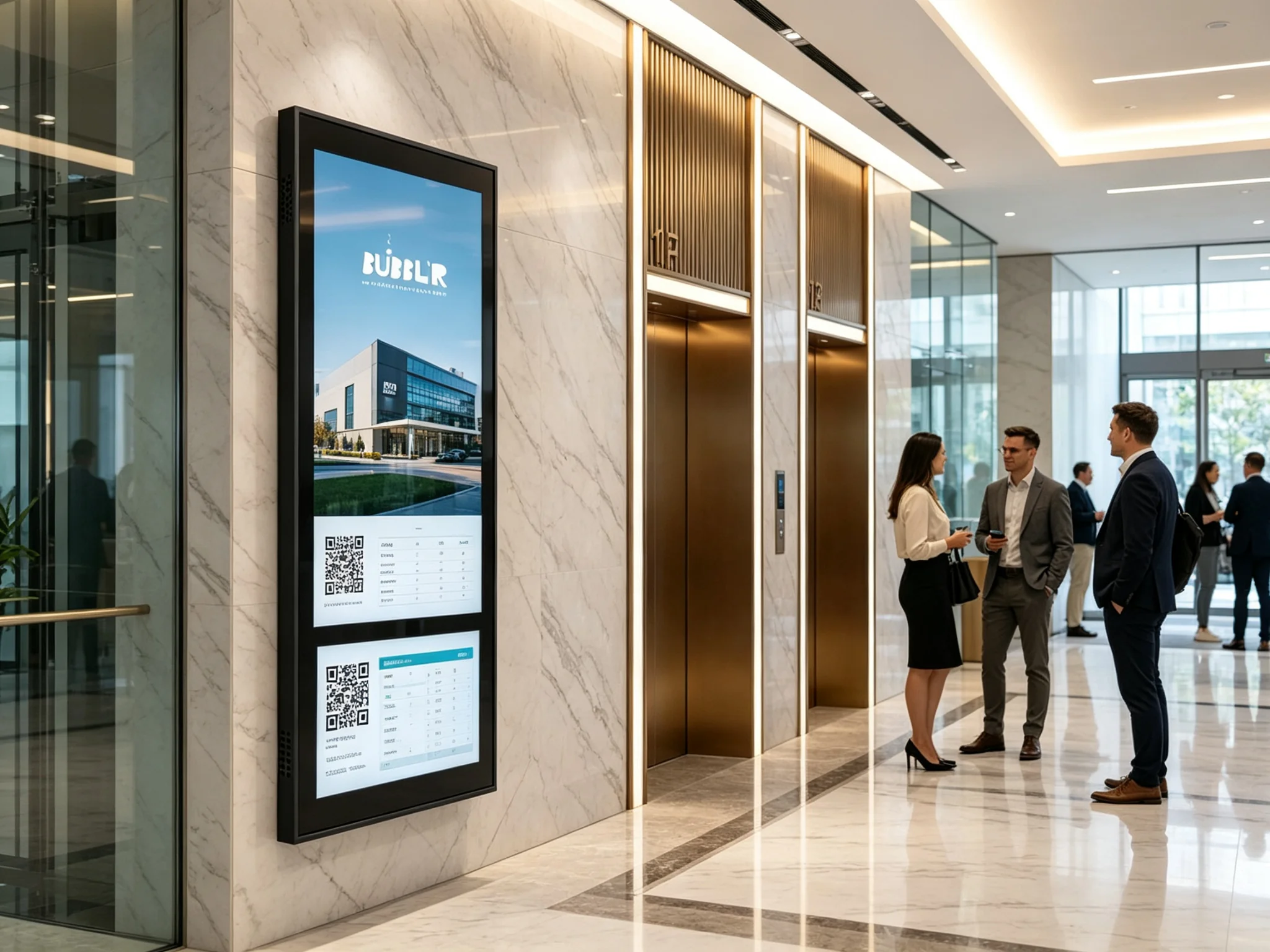

Lobbies & Reception Areas
Ideal for welcome messages, corporate branding, and visitor guidance.
Metro & Light Rail Entrances
Ideal for advertising display and real-time information delivery.
Corridors Outside Meeting Rooms
Ideal for meeting schedules, room status, and department announcements.
| Feature | Description |
|---|---|
| Brand Logo & Boot Animation | Personalize your product with custom logos and startup animations for full brand identity. |
| UI/OS Deep Customization | Tailor system interface, themes, and functionality to match your brand’s unique requirements. |
| Chassis & Mold Modification | Modify device enclosures or design new molds for differentiated product appearance. |
| Packaging Design | Custom packaging to suit your branding and global shipping needs. |
| SN Tracking & Batch Production | Each unit tracked with a unique serial number to ensure quality and manage after-sales efficiently. |
| White Label Services | Offer products ready to market under your own brand name. |
| CKD/SKD Supply Capability | Flexible shipment options: complete, semi-knocked down, or fully assembled units. |
| Software Development & SDK/API Support | Integrate third-party applications or develop proprietary software to meet specific project needs. |
Factory Entrance — Modern and spacious facility designed for high-efficiency production.

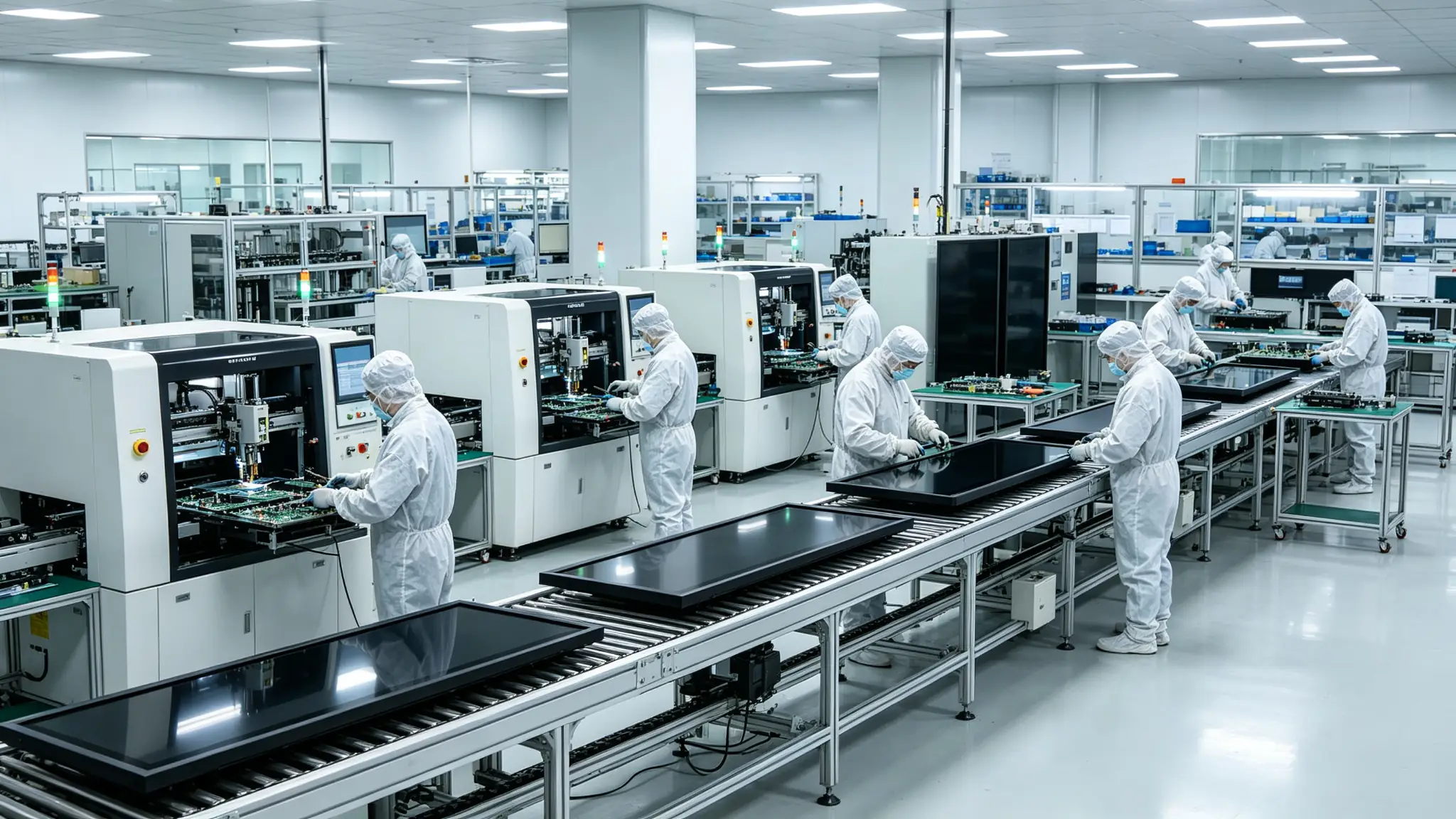

Production Line — Fully automated assembly lines for consistent quality output.

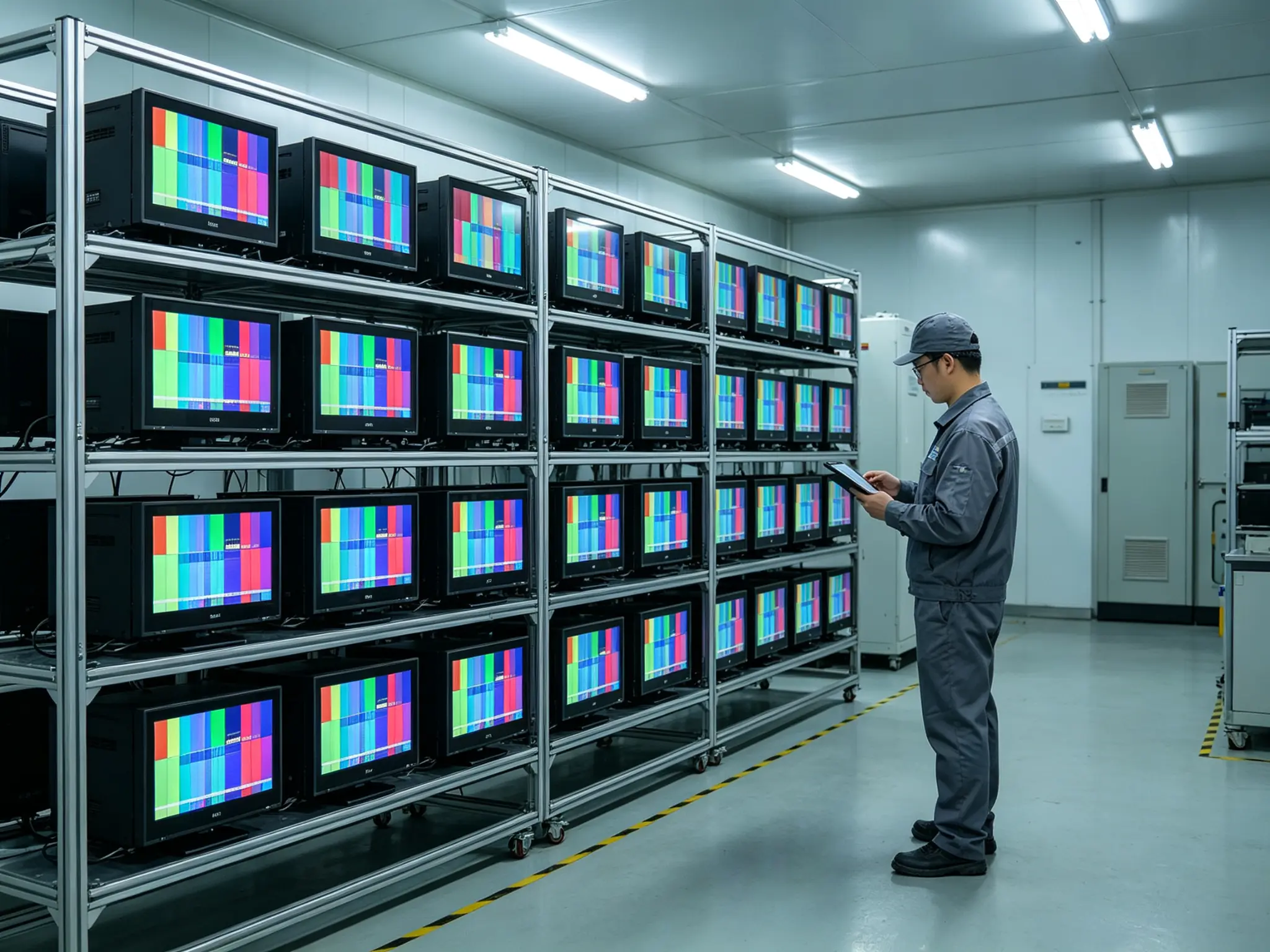

Quality Control — Rigorous testing ensures reliable products for global clients.
Warehouse & Logistics — Organized storage and efficient shipping for worldwide distribution.
Thailand—Retail Stores & Fashion Chains — High-impact promotional displays widely deployed in global retail chains.
HK CN—Supermarket & Hypermarket Chains — Stable, long-hour signage for daily promotions and in-store navigation.
Australian—Shopping Mall Commercial Areas — Large-format displays for brand advertising and tenant promotions.
UK—Airports & Train Stations — Reliable 24/7 operation in high-traffic transportation hubs.
USA—QSR & Restaurant Menu Boards — Dynamic digital menus and promotional screens for franchise chains.
UZ—Hospitals & Public Service Centers — Clear information display for navigation, announcements, and service queues.
Brazil—Corporate Lobby & Office Buildings — Professional signage for branding, visitor information, and event display.
Japan—Hotels & Hospitality Groups — Elegant lobby displays for welcome messages and promotional content.
Finland—Education & Exhibition Areas — Used for campus announcements, exhibition displays, and information boards.
Qtenboard has built a comprehensive pre-sales and after-sales service framework, ensuring stable long-term collaborations and seamless project execution for international brand partners and distributors alike.
