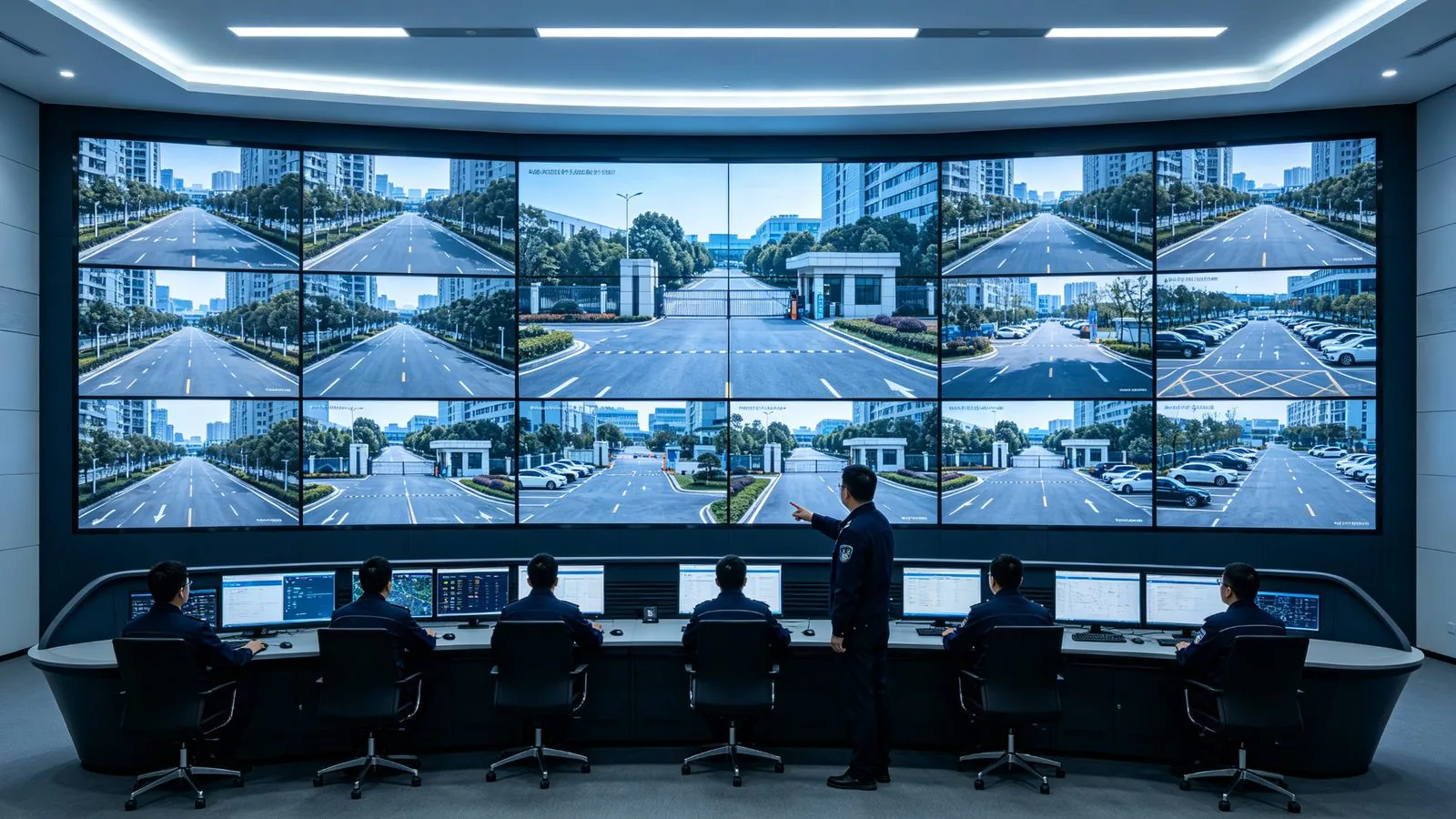

CHT 55" 3.5mm CCTV LCD Video Wall for Control Rooms Qtenboard
Technical specifications:
Industrial LCD Video Wall / CCTV Control Room Series
Built for Control Rooms That Never Switch Off
Industrial-grade LCD video wall systems engineered for CCTV surveillance, security command centers and large monitoring projects — factory-direct supply with engineering support from control-room layout to final commissioning.
- 46″ / 49″ / 55″ panels
- 0.88–1.8 mm ultra-narrow bezel
- 500 cd/m² brightness
- BNC · SDI · HDMI · LAN inputs
- 24/7 continuous-duty design
Minimum splicing bezel
Surveillance-grade brightness
Response for moving targets
Rated backlight lifespan
Limited warranty, lifetime support
A Display System Built Like a Control-Room Component
A surveillance video wall is not a consumer television with a bigger screen. It must hold consistent brightness across every panel, tolerate long fixed images without burn-in, and keep working while a city never sleeps. This series is engineered around those constraints so the wall behaves like one predictable part of the CCTV system, not a maintenance liability.
- Industrial A+ LCD panels with server-class high-temperature capacitors and temperature-controlled cooling.
- Built-in anti-image-retention protection for long-term fixed monitoring views.

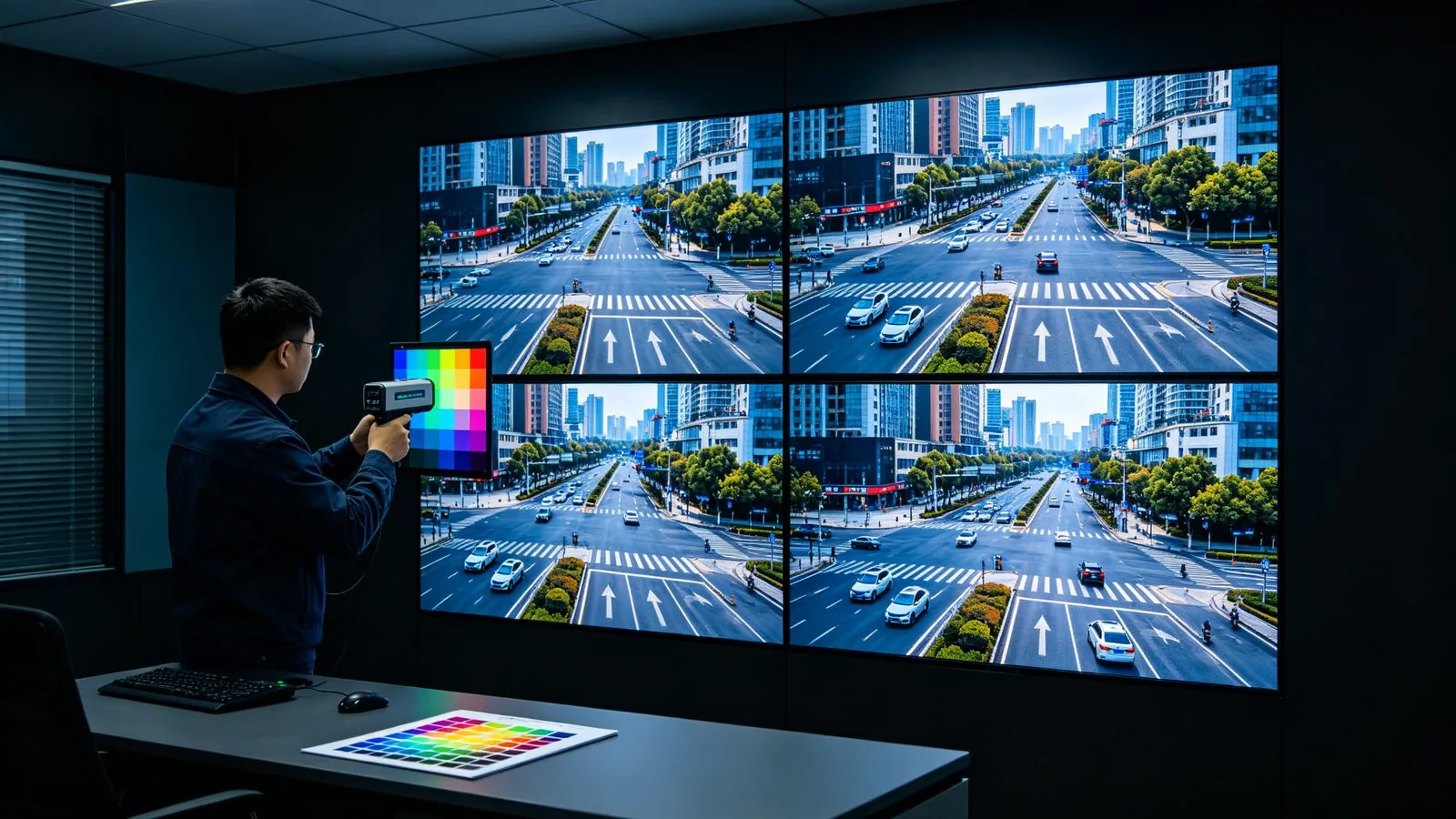

- Whole-array calibration keeps uniform brightness and color across adjacent splicing units.
- 24/7/365 continuous operation design with stable output and no unexpected shutdown.
- Low-power architecture reduces long-term energy cost in the customer’s control room.

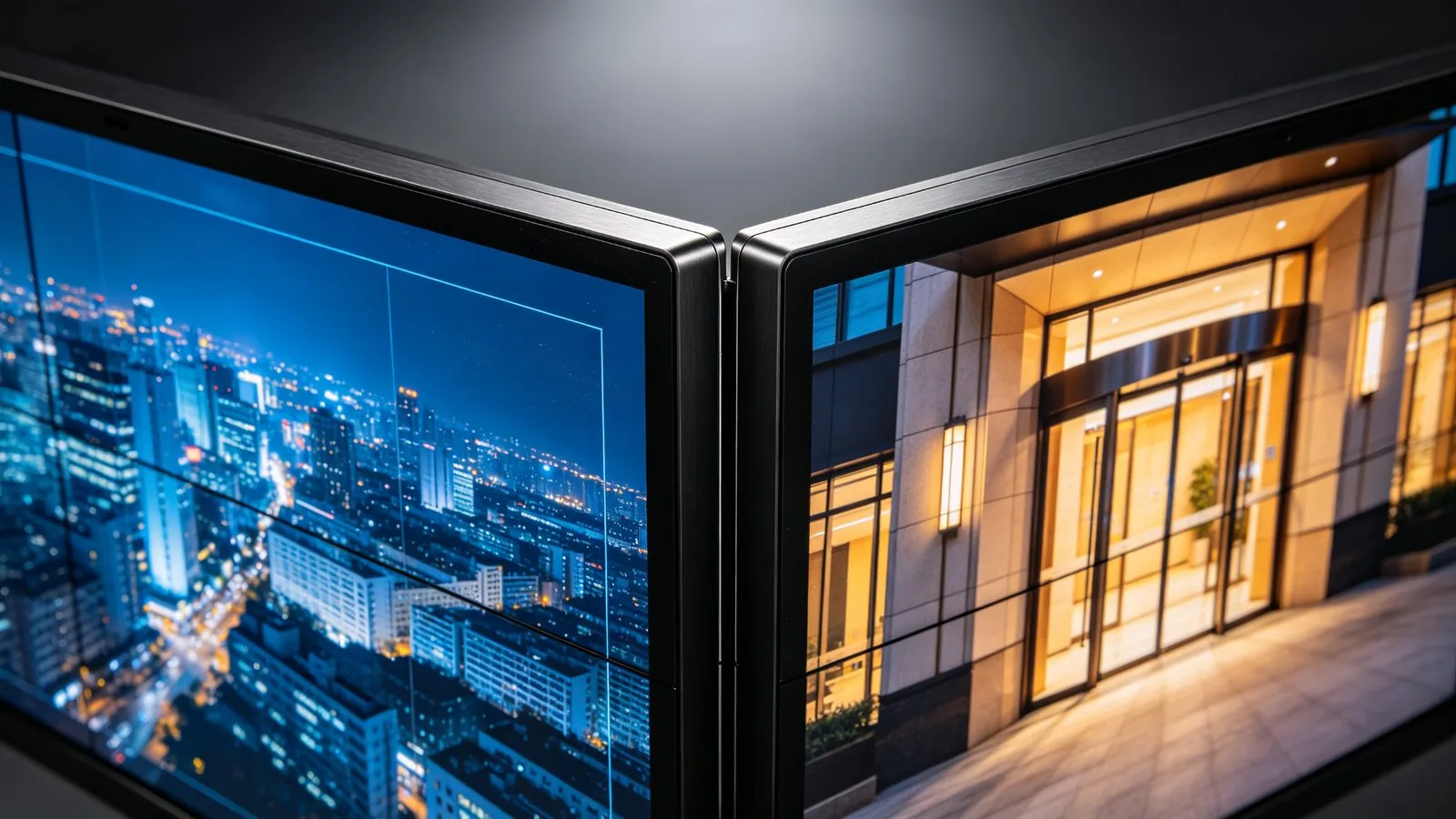

Ultra-narrow bezel: 0.88 mm / 1.7 mm / 1.8 mm options
What Makes This Wall Different
Four design decisions that matter on real surveillance projects: uptime, image truth, equipment reuse and controllable servicing.
24/7 Continuous Operation
Designed to run for years of shift duty, not for a season of retail display.
- Industrial A+ panel with server-level capacitors rated for high ambient temperature.
- Intelligent thermal management keeps long-run brightness stable.
- Anti-image-retention algorithm suppresses residual shadow from fixed monitoring views.
- Low power draw and ≥50,000 h backlight lifespan cut lifetime cost.
Surveillance-Grade Display Tuning
Calibrated for operators reading fast-moving scenes, not for showroom appeal.
- 500 cd/m² professional brightness keeps images readable in bright control rooms.
- ≤10 ms response time minimizes trailing on vehicles, crowds and machinery.
- High color restoration reproduces the camera’s real surveillance color and reduces misjudgment.
- Strong low-grayscale performance preserves night-time dark-area detail without black crush.
CCTV Signal Compatibility
Reuses the cameras, NVRs and DVRs you already own, so the project budget stays under control.
- Analog camera BNC input and HD coaxial SDI access.

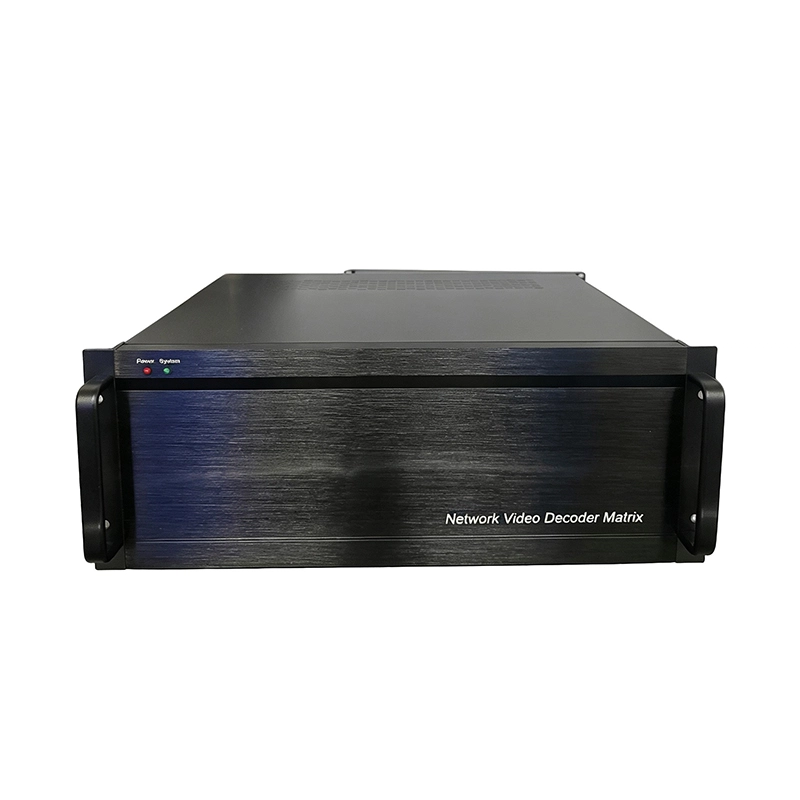

- HDMI / VGA switching and LAN port with optional IP stream decoding (ONVIF / RTSP, H.264 / H.265).

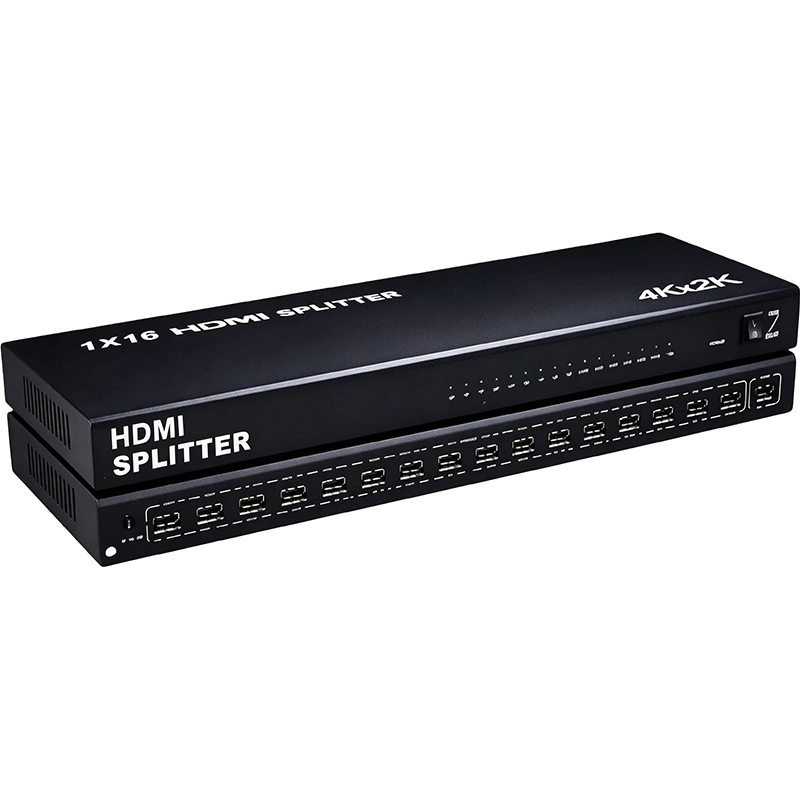

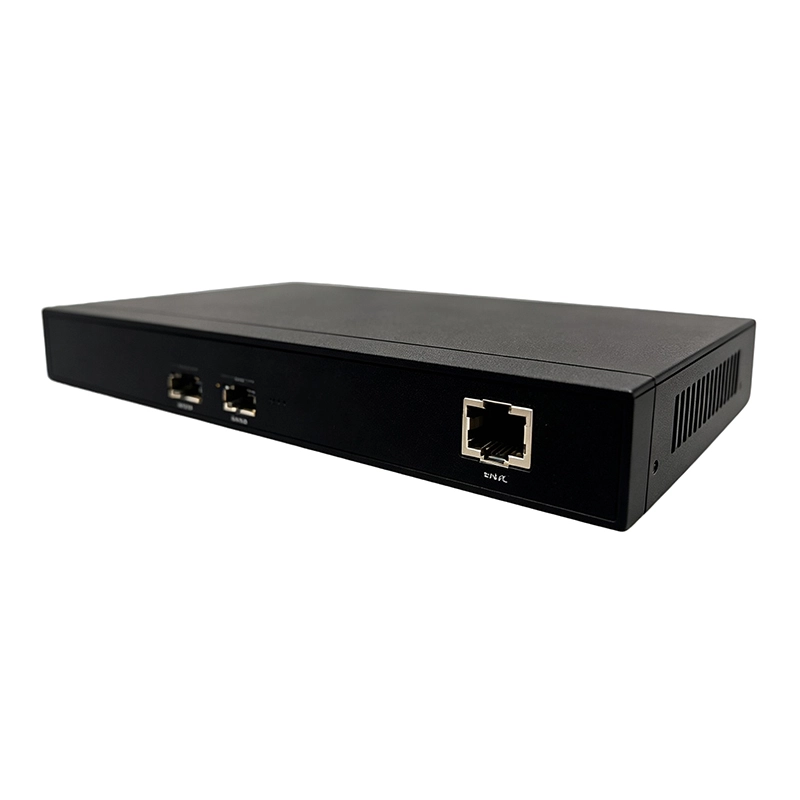

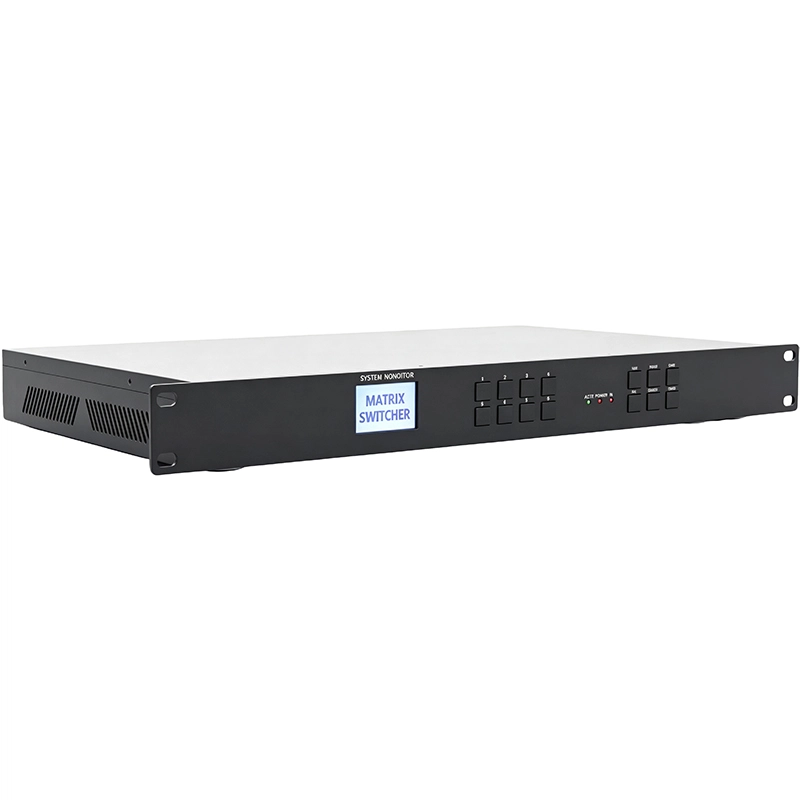

- Compatible with mainstream NVR and DVR video output; extra sources handled by matrix, controller or decoder quoted with the screens.
- Surge and lightning protection circuitry tolerates unstable power environments in overseas projects.
Splicing Control & Industrial Hardware
Built-in management and protection that keep a large wall easy to operate and cheap to service.
Splicing & Display Modes
- Bezel options 0.88 / 1.7 / 1.8 mm for different project budgets.
- Flexible matrices: 1×2, 2×2, 3×3, 4×4 and custom layouts.
- Full screen, split screen, single screen, roaming and picture-overlay switching.
- Signal polling, patrol display and alarm window pop-up support.
Hardware & Protection
- Electromagnetic shielding resists interference from monitoring hosts and power equipment.

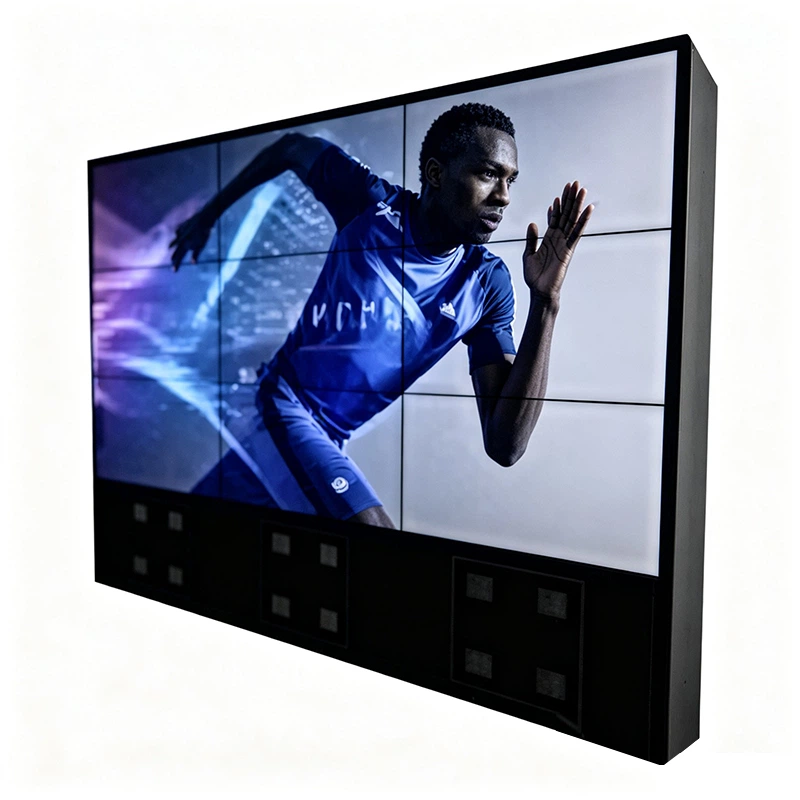

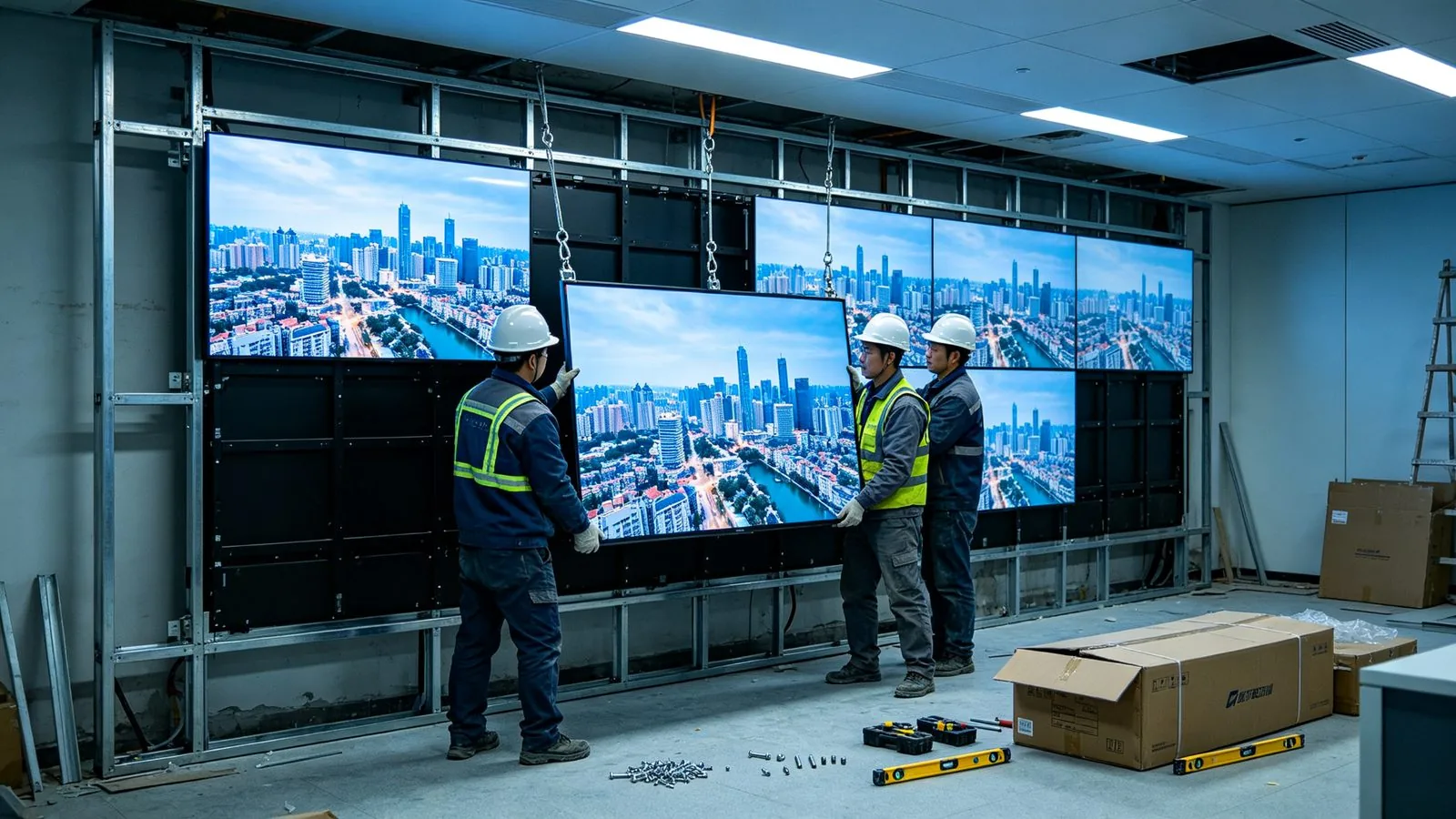

- Reinforced structure for long-term wall, cabinet or floor-stand installation.
- Remote network control, RS232 cascade to 30 units, one-key scene switching.
- Operating range 0–50 °C with 10–90% non-condensing humidity tolerance.
Complete Technical Specifications
Engineering-grade parameters for project evaluation, tenders and system design.
| Specification Item | Detailed Parameters |
|---|---|
| Screen Size | 46 inch / 49 inch / 55 inch optional |
| Splicing Bezel | 0.88 mm / 1.7 mm / 1.8 mm ultra-narrow bezel |
| Native Resolution | 1920×1080 Full HD; 3840×2160 optional |
| Panel Type | Industrial grade A+ LCD with LED backlight |
| Display Brightness | 500 cd/m² professional security grade |
| Contrast Ratio | 3000:1 |
| Response Time | ≤10 ms |
| Refresh Rate | 60 Hz |
| Viewing Angle | 178° / 178° |
| Backlight Lifespan | ≥50,000 hours |
| Working Mode | 24/7/365 continuous operation |
| Input Interface | HDMI, VGA, BNC, SDI, LAN, Audio |
| Control Interface | RS232, RJ45 cascade, IR remote |
| Cascade Support | Up to 30 units control cascade |
| Power Consumption | 120 W – 180 W depending on screen size |
| Working Temperature | 0 °C ~ 50 °C |
| Working Humidity | 10% ~ 90% non-condensing |
| MTBF | ≥50,000 hours |
| Installation | Wall mount, cabinet, floor stand; VESA compatible |
| Certification | Compliant with CE / FCC / RoHS; test reports available on request |
| Warranty | 3 years limited warranty plus lifetime technical support |
| MOQ | 4 units (typical 1×4 or 2×2 matrix) |
| Lead Time | 7–15 working days for standard models; 20–30 working days for customized projects |
| Packaging | Export carton + foam + wooden frame, anti-collision and anti-pressure |
Parameters above apply to standard models. Non-standard sizes, splicing schemes and function customization are available on request.
Where These Walls Are Deployed
Real project scenarios where continuous operation and image truth are non-negotiable.
Public Security

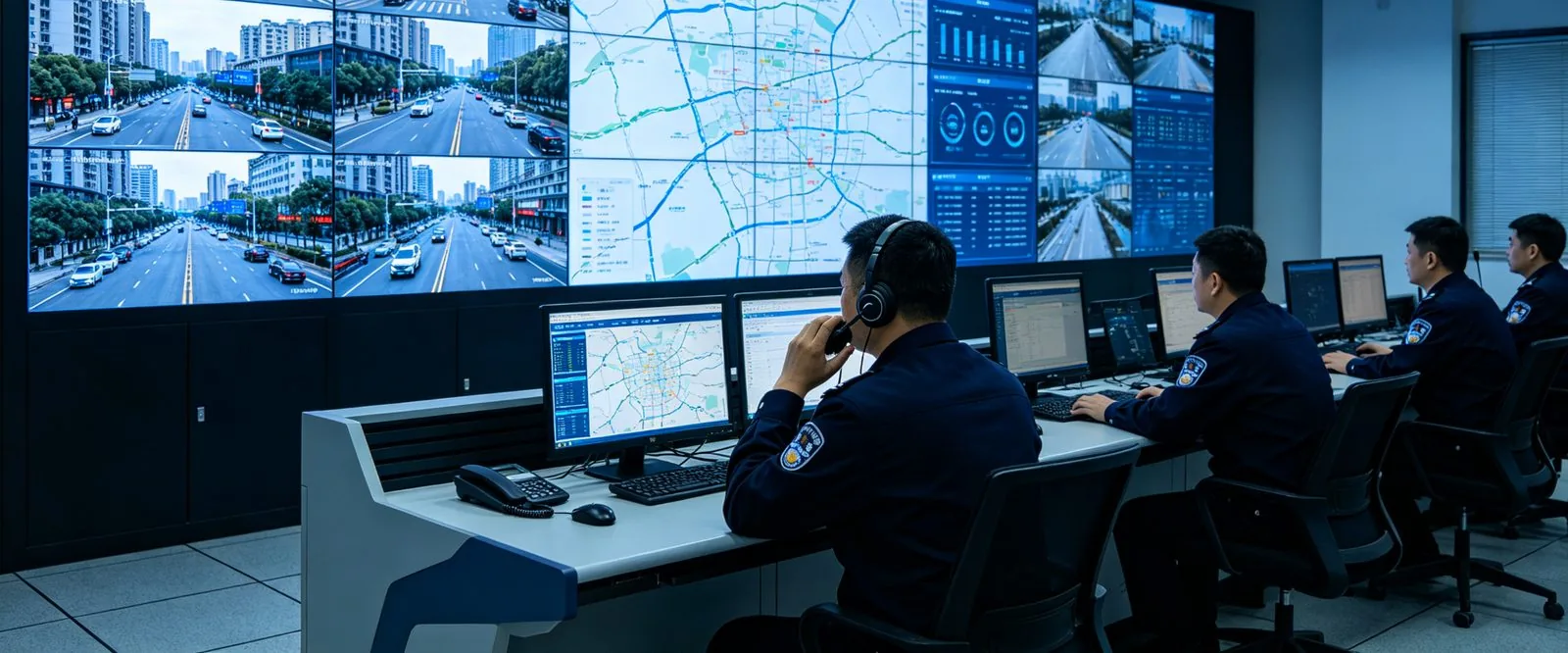

Police & Emergency Command Centers
Aggregates urban road, community and public-area feeds for emergency dispatch, incident tracking and video review.
Industrial

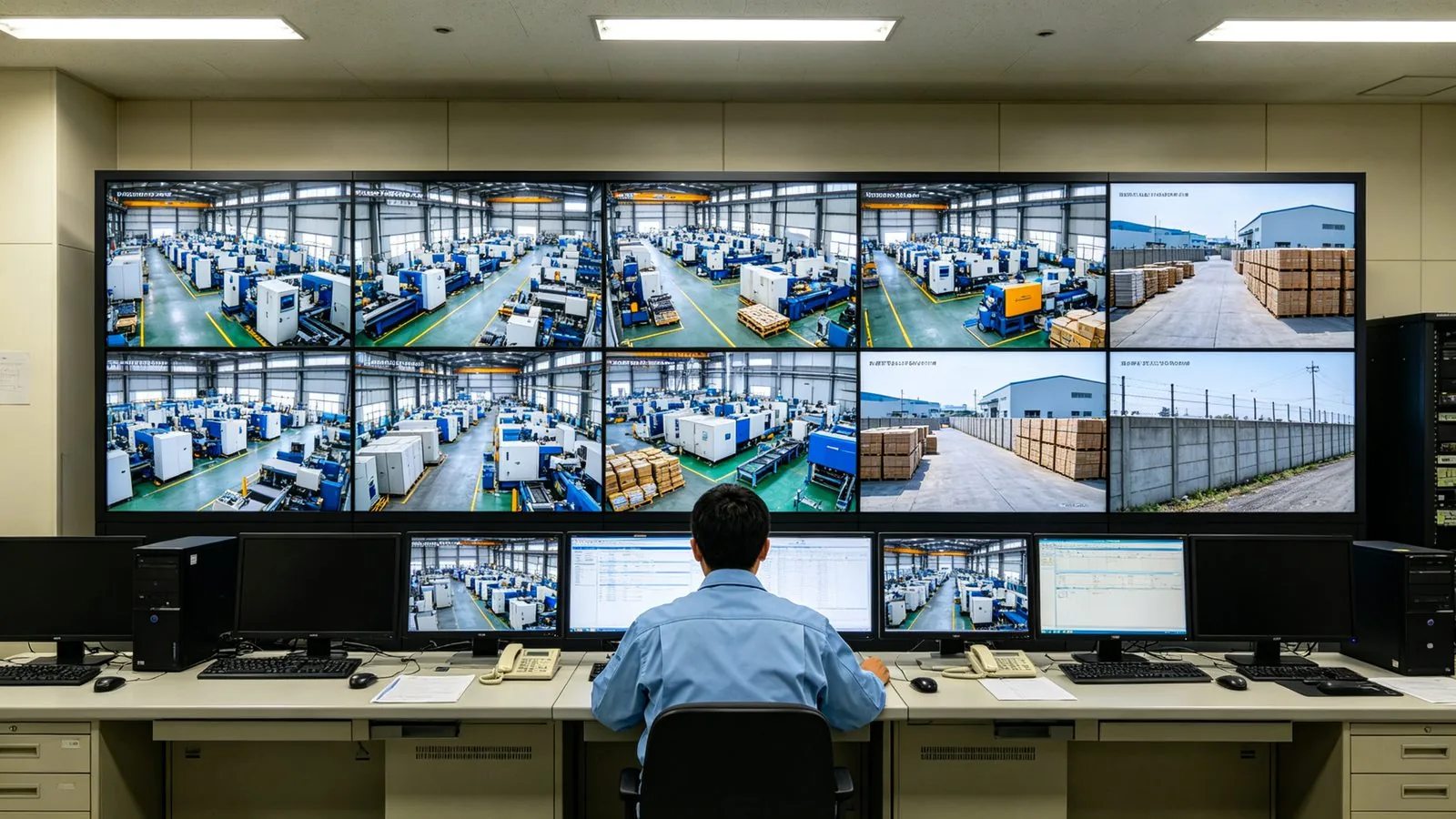

Industrial Parks & Factory Security
Around-the-clock monitoring of workshops, warehouses and perimeters to reduce safety and personnel risk.

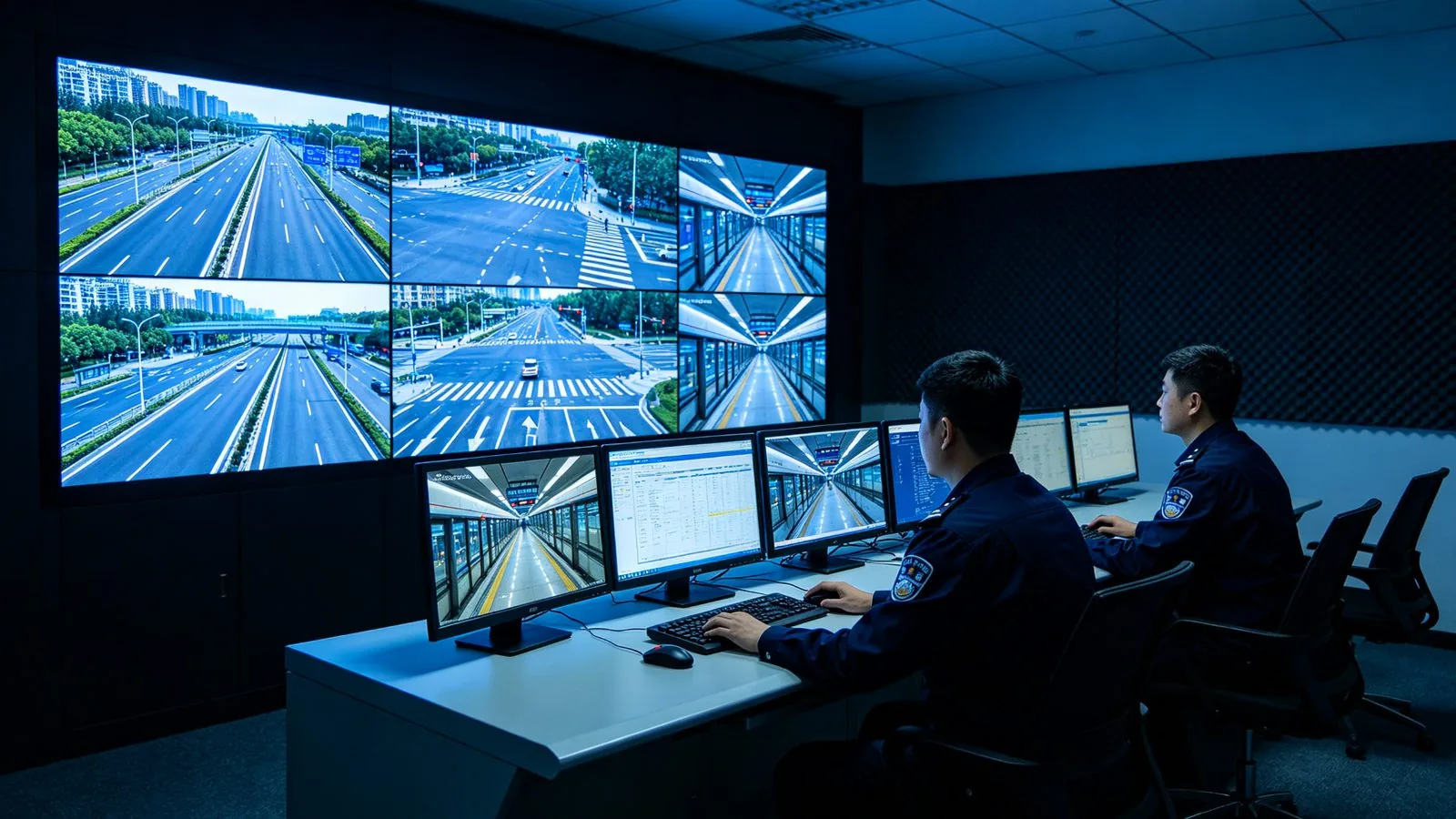

Transportation
Traffic & Transportation Hubs
Fast-response display captures high-speed traffic detail for road, station and airport monitoring operations.

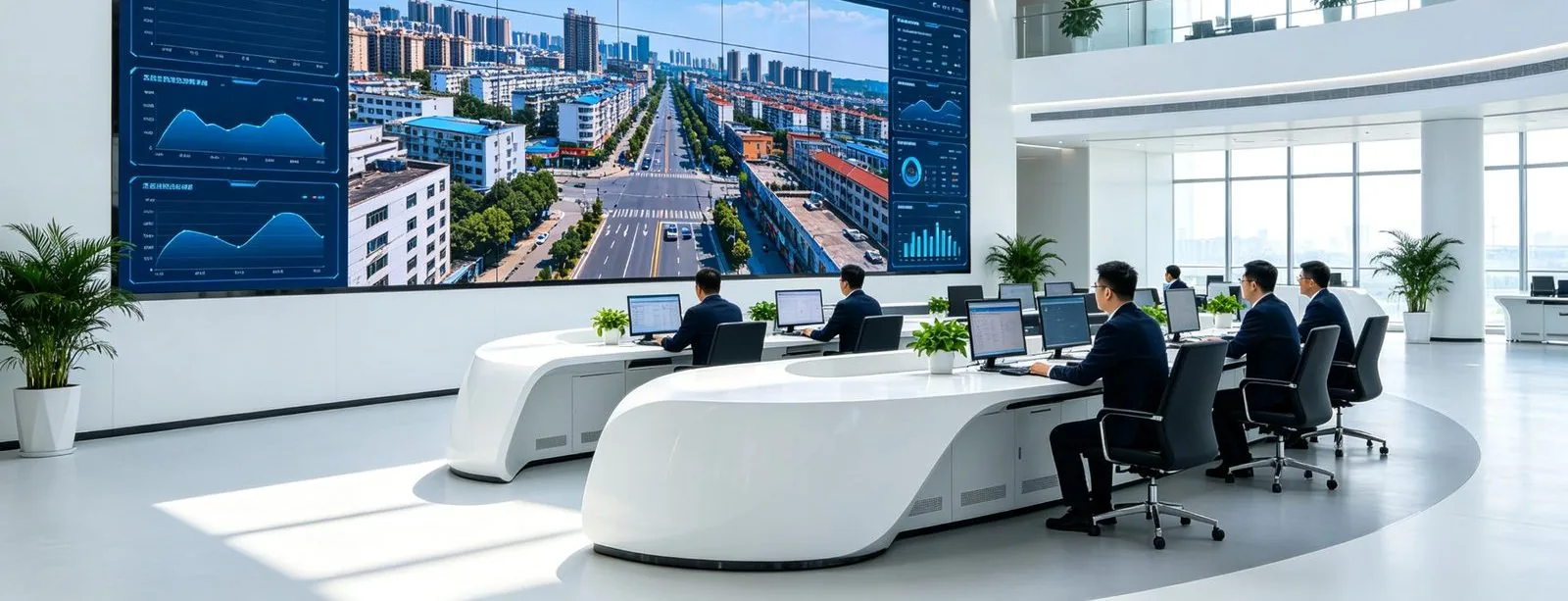

Smart City
Smart City & Government Platforms
Panoramic monitoring walls that dock with city-level platforms and intelligent security management systems.
Engineered for System Integrators
For global security integrators and engineering contractors, the scorecard is project stability, after-sales controllability and total cost of ownership.
Lower Project Risk
Industrial hardware and a mature surveillance design reduce rework and customer complaints caused by display failure.
Strong Compatibility
Works with old and new CCTV systems, so the customer’s existing equipment is largely reused and the budget stays in control.
Simpler Construction
Cascade wiring and standardized mounting shorten the construction cycle and reduce on-site commissioning time.
Lower Lifecycle Cost
Low failure rate and long service life reduce after-sales maintenance pressure for the engineering company.
Export-Ready Qualification
CE / FCC / RoHS compliant with complete customs documentation for global clearance and project bidding.
B2B Customized Service
Non-standard sizes, splicing schemes, function customization and OEM / ODM / CKD service available.
Need a Video Wall Layout for Your Control Room?
Send the room dimensions, screen quantity and signal types — our engineering team returns a layout drawing and equipment list.
Overseas Project Service Process
One team from first inquiry to long-term after-sales, so integrators keep control of the whole delivery.
-
1
Project Requirement Review
Confirm scenario, screen quantity, splicing layout, signal types and project budget.
-
2
Free Solution Design
Video wall layout drawing, wiring diagram and equipment matching scheme, free of charge.
-
3
Sample & Technical Confirmation
Sample testing and on-site technical docking before mass production.
-
4
Production & Export Packaging
Export-grade carton, foam and wooden frame with anti-collision and anti-pressure protection.
-
5
Complete Export Documents
Invoice, packing list, certification and all customs clearance materials.
-
6
Remote Installation Guidance
Engineer online support with video tutorials and multi-language manuals.
-
7
Long-Term After-Sales Guarantee
3-year warranty with lifetime technical support and upgrade consultation.
B2B Customer FAQ
What sizes and bezel widths are available?
Standard options are 46″, 49″ and 55″ panels with 0.88 mm, 1.7 mm and 1.8 mm ultra-narrow bezels. Custom sizes and splicing schemes are available for large projects.
Will it work with our existing analog cameras and NVR system?
Yes. With BNC, SDI, HDMI and LAN interfaces it matches analog cameras, AHD / TVI / CVI coaxial cameras and mainstream NVR / DVR devices. In most cases no extra converter is needed; we confirm the wiring scheme against your signal list before production.
How is long-term 24/7 reliability ensured?
This is an industrial surveillance model, not a consumer TV. Anti-image-retention protection, anti-jitter circuitry, intelligent heat dissipation and industrial circuit protection are designed for continuous operation with routine maintenance.
Can the wall be controlled and monitored remotely?
Yes. RS232 cascade (up to 30 units), RJ45 network control and IR remote support one-key scene switching and patrol display. Optional decoders and CMS add centralized and remote management for large control rooms.
Do you support OEM and private-label orders?

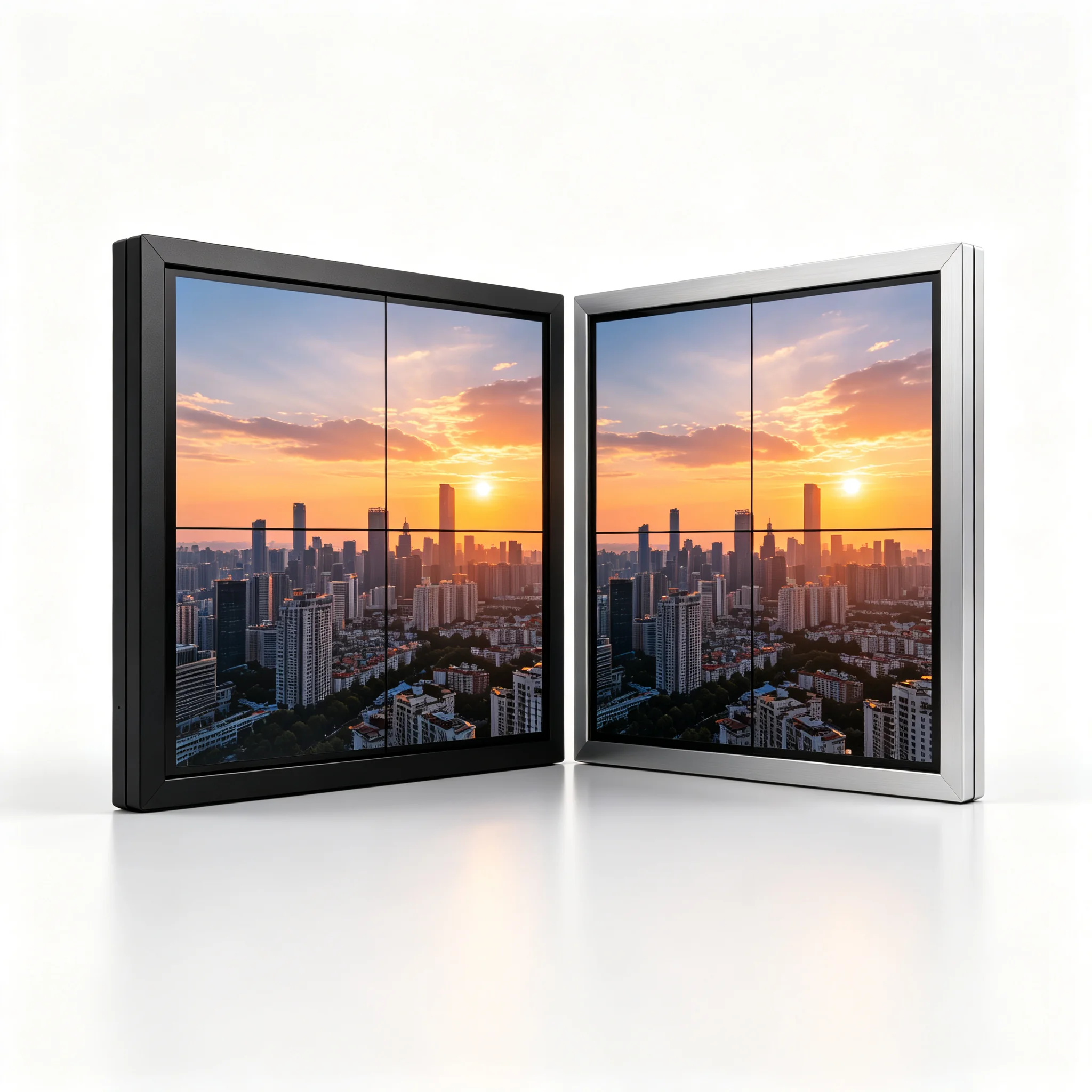

Yes. Logo printing, boot animation, language modification, chassis color and packaging customization are available for global distributors and integrators, including CKD / SKD bulk supply.
What are the MOQ, lead time and warranty terms?
Typical MOQ is 4 units covering a standard 1×4 or 2×2 matrix. Standard models ship in 7–15 working days and customized projects in 20–30 working days. Warranty is 3 years limited, with panel, parts and labor scope stated in the sales contract.
Start Your Industrial Video Wall Project
Send your scenario, screen quantity, splicing layout and signal types. Our engineering team responds with a video wall layout drawing, equipment matching list and quotation.
- Free project solution & quotation
- Large project customization
- OEM / ODM service
- Global engineering cooperation
CE / FCC / RoHS compliant — 3-year limited warranty — Lifetime technical support — Factory-direct supply
