Powerful CMS & Ad Management for Queue Management Kiosk
Cloud-Based CMS Control for Queue Management Kiosk
多設備內容交付、布局編輯、緊急推送、播放日誌、設備監控、批量更新、計劃開/關以及基於角色的訪問。
多設備內容交付、布局編輯、緊急推送、播放日誌、設備監控、批量更新、計劃開/關以及基於角色的訪問。
Qtenboard LCD After-Sales Service
• 最低1-3年保修
• 維修和更換的當地經銷商
• 批量訂單的備件支持
• 遠程技術支持和系統升級
• FCC/CE/RoHS/ISO Certified
• 用於快速響應和跟蹤的專業CRM
• 24/7在線服務
• 經驗豐富的多語種銷售團隊
• OEM/ODM長期支持
加入Qtenboard作為我們的經銷商或代理商
技術規格:
Qtenboard - Queue Management Kiosk Top 3 Manufacturer in China
Qtenboard Queue Management Kiosk Terminal
Dual Manufacturing Hubs in Shenzhen & Guangzhou — Qtenboard operates two advanced production facilities to guarantee consistent quality, reliable supply, and scalable manufacturing for global Queue Management Kiosk partners and queue management kiosk 項目。
- 330,000平方米總生產面積
- 自動化生產線
- Daily Queue Management Kiosk Production Capacity: 200 Units
- 48小時老化試驗
- 國際認證 — CE · FCC · RoHS · PSE · UL (optional)
- 靈活的生產模式
Queue Management Kiosk Core Features
HD & UHD
2K/4K High-resolution visual showcase for every Queue Management Kiosk
多種設計顏色
Black / White / Red and more Queue Management Kiosk options
多系統兼容性
Optional Android / Windows for Queue Management Kiosk deployment
可定製的接口
HDMI, VGA, audio, USB, SD card slot and more for Queue Management Kiosk
觸摸信息亭
Touch or non-touch Queue Management Kiosk options
Queuing Kiosk Product Highlights
標準擋板設計
Reliable frame with durable construction for commercial-grade Queue Management Kiosk usage.
多語言界面
Supports English, French, Italian, etc. for global Queue Management Kiosk projects.
超廣角顯示器
178° viewing angle ensures clear, color-accurate visuals on your Queue Management Kiosk from any perspective.
軟件兼容性
Supports various Queue Management Kiosk software and self-service applications, adapting flexibly to different workflows.
多外設支持
Supports fingerprint scanners, cameras, GPS, and numeric keypads, enabling versatile self-service functionality on your Queue Management Kiosk.
Queue Management Kiosk OEM Option
Queue Management Kiosk Technical Specifications from Qtenboard Manufacturer
The following technical parameters are based on a 55 inch QM-5515GP Queue Management Kiosk model. If you need technical parameters for other sizes, please contact Qtenboard.| 顯示參數 | |
| The following technical parameters are based on a 55 inch Queue Management Kiosk model. If you need technical parameters for other sizes, please contact Qtenboard. | |
| 品牌 | Qtenboard |
| 型號 | QM-5515GP |
| 屏幕尺寸 | 55英寸 (21.5 "23.6" 32 "43" 49 "55" 65 "可選) |
| 分辨率 | 1024 × 600; 1920*1080,2k; 3840*2160,4k。 (可選) |
| 視角 | 178° |
| 對比度 | 3000:1 / 4500:1 |
| 顯示尺寸 | 216.58*135.36mm（H×V） |
| 顯示速率 | 16:9 / 9:16 |
| 後燈 | LED指示燈 |
| 亮度 | ≥250 / 300 / 400 / 500 cd/㎡ |
| 刷新率 | 60/120赫茲 |
| 顏色 | 16.7m (8位)/1.07B (10位) |
| 系統配置 | |
| 操作系統 | Android |
| 版本 | 9.0 / 11.0 / 13.0 / 14.0 / 16.0 |
| CPU | Quad/Octa-core A55, Quad-core A53+A73,Hybrid Quad A53 + A72 |
| GPU | Mali-G52 |
| RAM | 1 / 2 / 4 /8 GB |
| 存儲內存 | 8 / 16 / 32 / 64 / 128 GB |
| 接口 | HDMI In * 1,USB3.0 * 2,tf卡 * 1,RJ45*1 |
| 音頻接口 | 3.5毫米 * 1 |
| 網絡 | 1pc,10M/100M/1000M自適應以太網 |
| WIFI和藍牙 | 內置WIFI(2.4/5g單信號) 和BT 4.2 / 5.0 / 5.4 |
| 3G/4G | 可選 |
| 系統功能 | |
| 解碼能力 | 支持2/4k視頻和圖片解碼和播放 |
| 軟件應用 | 支持安裝第三方軟件 |
| 語言 | 英語etc語言 |
| 開機動畫 | 支持自定義 |
| 紅外遙控 | 通過遠程控制操作系統 |
| 音頻功能 | 支持左/右聲道輸出,內置雙8Ω 功放 |
| 電源開/關 | 遠程控制/定時/網路喚醒/自啟動 |
| 系統授權 | 允許root權限並自定義軟件開發 |
| 鼠標模式 | 支持有線/無線鼠標或使用鍵盤 |
| 系統更新 | 支持本地和遠程升級 |
| 播放模式 |
Audio：MP3,WMA,WAV, APE, FLAC, AAC, OGG,M4A,3GPP etc Picture：JPG、BMP、PNG etc Video：AVI，rm，rmvb， MKV，WMV，MOV，MP4 etc |
| 打字 | 標準安卓鍵盤為默認,可以安裝第三方打字 |
| 更多功能 | 遵循說明手冊/視頻或聯繫供應商 |
| 軟件功能 (CMS可選) | |
| 後台支持 | Web/移動IE (本地網絡/WAN) |
| 播放模式 | Networking/standalone |
| 播放支持 | 視頻/圖片/字幕/PPT/web/天氣/時鐘等混合播放 |
| 智能拼接 | 支持自定義播放模式拼接為設置 |
| 定時功能 | 支持設置播放自定義程序的時間段 |
| 終端管理 | 管理員可以創建和修改帳戶 對於級別到級別的管理 |
| 更多功能 | 遵循說明手冊/視頻或聯繫供應商 |
| 機床參數 | |
| 顏色 | 黑色/白色/其他 |
| 框架材料 | 鋁 (氧化拉絲) |
| 閥體材料 | 金屬冷軋鋼板 (金屬塗層) |
| 表面材料 | 3毫米鋼化玻璃 (物理) |
| 包裝材料 | 中性紙箱/木製框架/木箱 |
| 淨重/毛重 | 12KG/13k (僅供參考) |
| 安裝方式 | 安裝在牆上/嵌入/懸掛/支架 |
| 電氣特性 | |
| Scenarios | 室內 |
| 額定電壓 | AC110-220V |
| 備用電源 | ≦1W |
| 額定功率 | ≦85W |
| 適宜環境 | temperature‐0℃~55℃/humidity 10%RH~90%RH |
| 存儲環境 | temperature‐5℃~60℃/humidity 10%RH~90%RH |
* Technical parameters above are for the 55 inch QM-5515GP Queue Management Kiosk reference model. For detailed specs of other sizes please contact Qtenboard.
應用程序

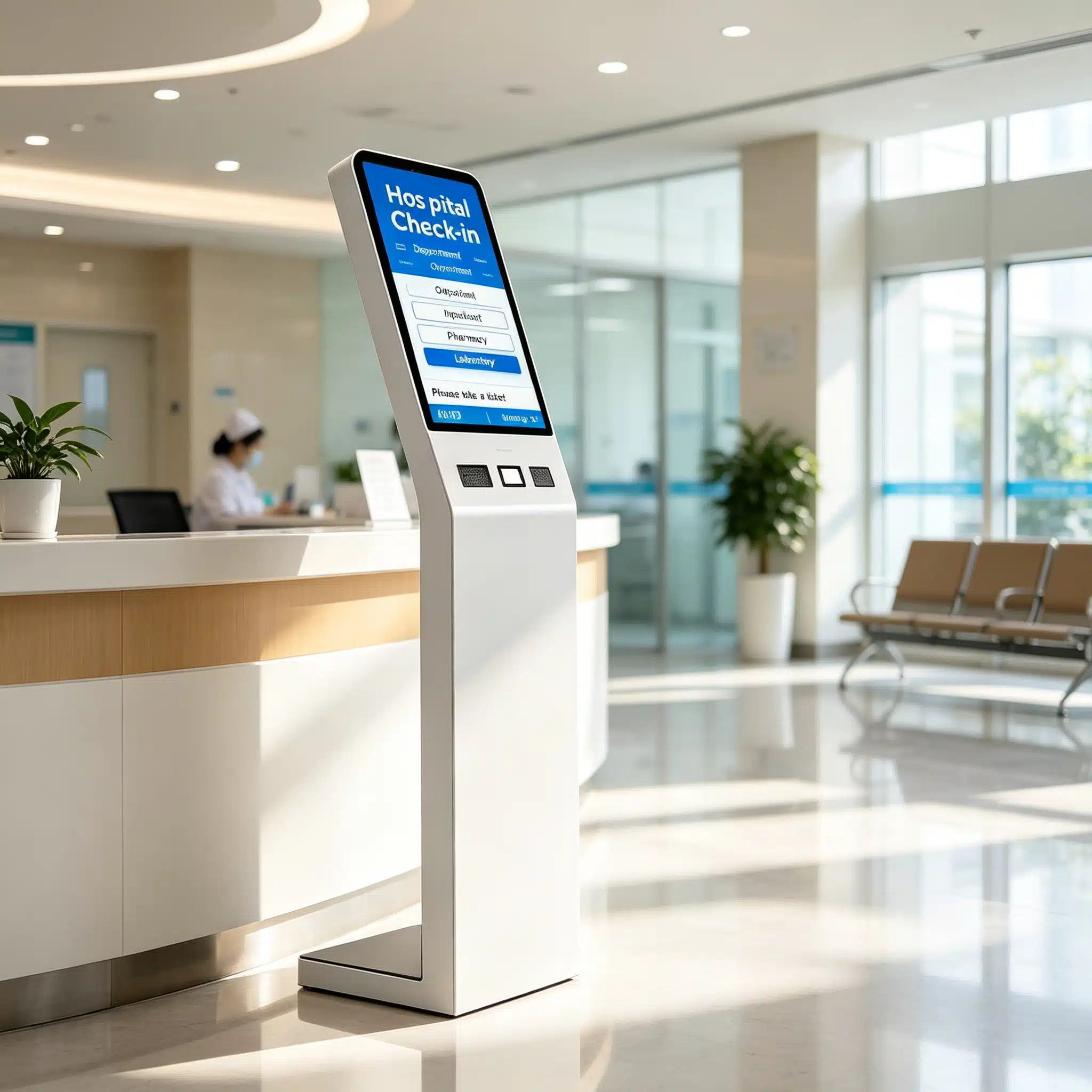

Ideal for hospitals and clinics to manage patient flow and reduce waiting time with a reliable Queue Management Kiosk.

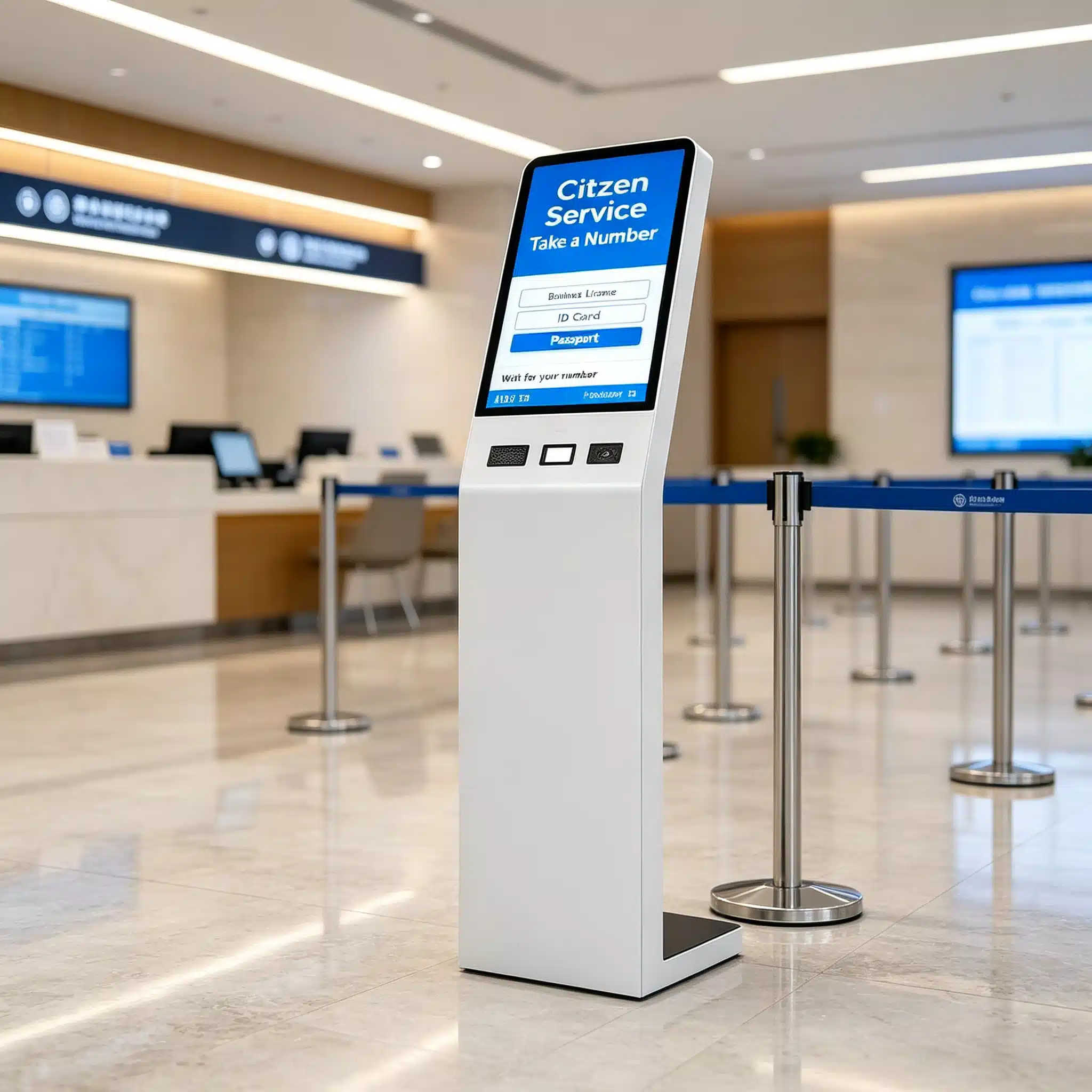

Perfect for government service halls to streamline visitor queues and improve efficiency with a Queue Management Kiosk.

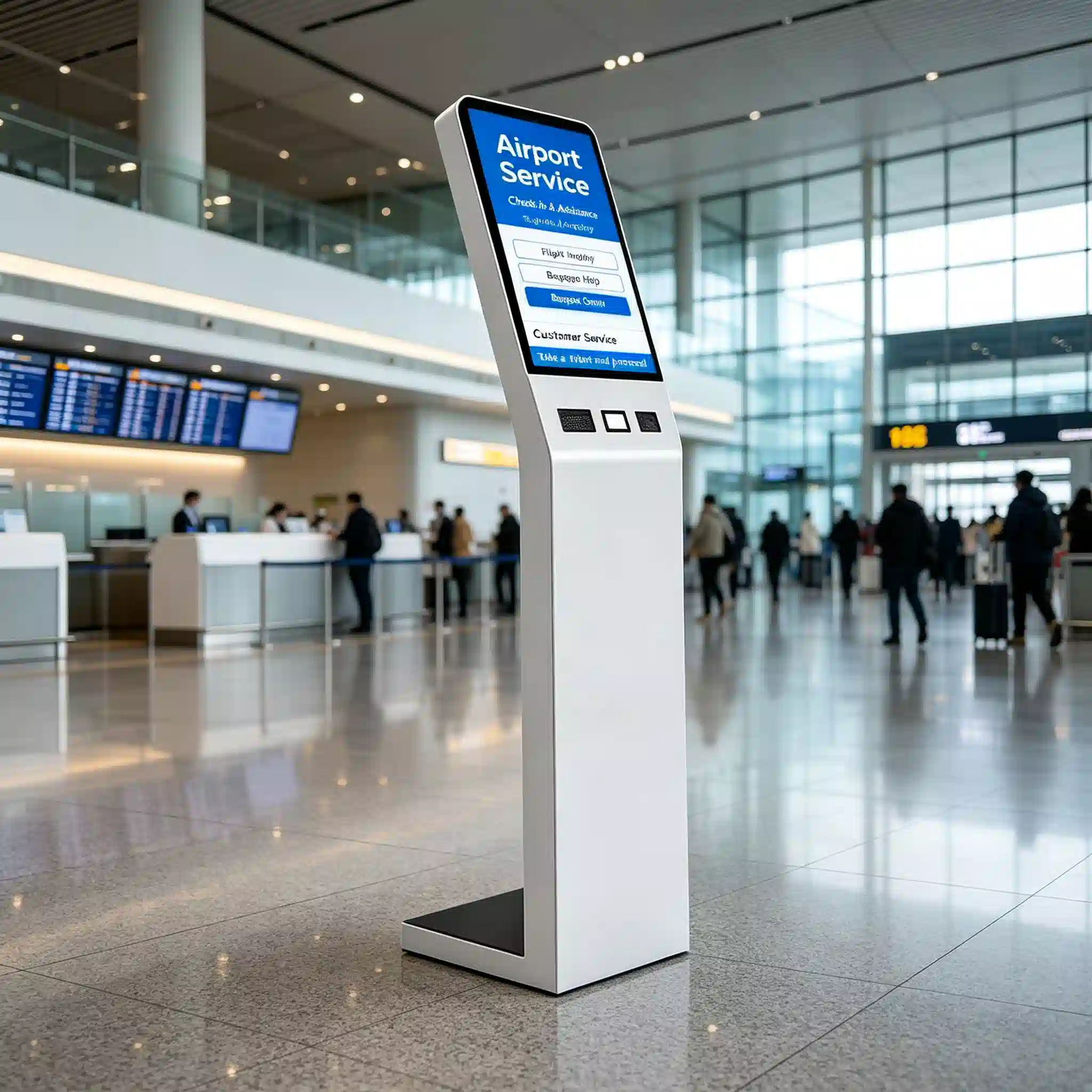

Suitable for airports and transportation hubs to organize passenger check-in and boarding processes using a Queue Management Kiosk.
Qtenboard Queue Management Kiosk OEM/ODM Customization Capabilities
| 功能 | 描述 |
|---|---|
| 品牌標誌和啟動動畫 | Personalize your Queue Management Kiosk with custom logos and startup animations for full brand identity. |
| UI/OS深度定製 | Tailor the Queue Management Kiosk system interface, themes, and functionality to match your brand’s unique requirements. |
| 底盤和模具修改 | Modify Queue Management Kiosk enclosures or design new molds for differentiated product appearance. |
| 包裝設計 | Custom Queue Management Kiosk packaging to suit your branding and global shipping needs. |
| SN跟蹤和批量生產 | Each Queue Management Kiosk unit is tracked with a unique serial number to ensure quality and manage after-sales efficiently. |
| 白標服務 | Offer Queue Management Kiosk products ready to market under your own brand name. |
| CKD/SKD Supply Capability | Flexible Queue Management Kiosk shipment options: complete, semi-knocked down, or fully assembled units. |
| 軟件開發和SDK/API支持 | Integrate third-party applications with your Queue Management Kiosk or develop proprietary software to meet specific project needs. |
Qtenboard Queue Management Kiosk Factory Overview
Factory Entrance — Modern and spacious facility designed for high-efficiency Queue Management Kiosk production.
Production Line — Fully automated assembly lines for consistent Queue Management Kiosk quality output.
Quality Control — Rigorous testing ensures reliable Queue Management Kiosk products for global clients.
Warehouse & Logistics — Organized storage and efficient shipping for worldwide Queue Management Kiosk distribution.
全球案例
Thailand—Retail Stores & Fashion Chains — High-impact Queue Management Kiosk promotional displays widely deployed in global retail chains.
HK CN—Supermarket & Hypermarket Chains — Stable, long-hour Queue Management Kiosk signage for daily promotions and in-store navigation.
Australian—Shopping Mall Commercial Areas — Large-format Queue Management Kiosk displays for brand advertising and tenant promotions.
UK—Airports & Train Stations — Reliable 24/7 Queue Management Kiosk operation in high-traffic transportation hubs.
USA—QSR & Restaurant Menu Boards — Dynamic Queue Management Kiosk digital menus and promotional screens for franchise chains.
UZ—Hospitals & Public Service Centers — Clear Queue Management Kiosk information display for navigation, announcements, and service queues.
Brazil—Corporate Lobby & Office Buildings — Professional Queue Management Kiosk signage for branding, visitor information, and event display.
Japan—Hotels & Hospitality Groups — Elegant Queue Management Kiosk lobby displays for welcome messages and promotional content.
Finland—Education & Exhibition Areas — Queue Management Kiosk units used for campus announcements, exhibition displays, and information boards.
為全球品牌合作夥伴提供端到端支持
Qtenboard provides a professional service ecosystem for Queue Management Kiosk projects, ensuring reliable 24/7 operation and seamless project delivery for global distributors and system integrators.
售前支持
- Customized Project Consulting — One-on-one requirement analysis for smart Queue Management Kiosk solutions, including hardware sizing and peripheral integration.
- Hardware & Software Compatibility — Technical guidance on integrating our Queue Management Kiosk with your local queue management software or CMS.
- Rapid Prototyping & OEM Support — Fast sample delivery for Queue Management Kiosk units with custom branding and certification support for international markets.
售後支持
- 24/7 Global Technical Response — Expert support for Queue Management Kiosk calling systems and kiosk hardware via WhatsApp, email, and video calls.
- Remote System Configuration — Real-time assistance for firmware debugging, ticket printer setup, and Queue Management Kiosk remote troubleshooting.
- SN Tracking & Batch Traceability — Every Queue Management Kiosk is registered for precise warranty tracking and maintenance diagnosis.
- Cloud-Based Firmware Updates (OTA) — Ensuring your Queue Management Kiosk stays updated with the latest security and feature enhancements.
- Spare Parts & Module Inventory — Stockpiled thermal printers, touch modules, and control boards to keep every Queue Management Kiosk running with zero downtime.
- Export-Grade Logistics Experience — Specialized packaging for Queue Management Kiosk units to ensure safe long-distance shipping and smooth customs clearance.
常見問題
1.Can the Queue Management Kiosk work in both indoor and semi-outdoor environments?
Yes, this Queue Management Kiosk is designed with industrial-grade components to operate reliably in various indoor and sheltered outdoor locations.
2.How is user privacy protected on the Queue Management Kiosk?
All personal data collected by the Queue Management Kiosk is encrypted and securely stored, complying with data protection standards.
3.Does the Queue Management Kiosk support emergency alerts or announcements?
Yes, the Queue Management Kiosk can display urgent messages and voice alerts in real-time when needed
4.Can the Queue Management Kiosk handle peak hours efficiently?
Yes, the Queue Management Kiosk system is optimized to manage high traffic and maintain smooth service flow.
Get Your Queue Management Kiosk Quote Today
Contact Qtenboard for a customized Queue Management Kiosk solution, OEM/ODM support, and fast global delivery.
電子郵件: Info@qtenboardglobal.com
WhatsApp: +86 18124715048
Learn more about our smart queue management kiosk 解決方案。
