True multi-touch collaboration
With 10–20 touch points, a group of children can work on the same touch screen table at once — solving puzzles, building projects or playing games together instead of waiting their turn on a single tablet.
Qtenboard LCD After-Sales Service
• 最低1-3年保修
• 維修和更換的當地經銷商
• 批量訂單的備件支持
• 遠程技術支持和系統升級
• FCC/CE/RoHS/ISO Certified
• 用於快速響應和跟蹤的專業CRM
• 24/7在線服務
• 經驗豐富的多語種銷售團隊
• OEM/ODM長期支持
加入Qtenboard作為我們的經銷商或代理商
技術規格:
Qtenboard · Touch Screen Table
One touch screen table.
Ten kids.
Zero waiting turns.
An interactive touch screen table built for shared learning — up to 20 simultaneous touch points let a whole group of children explore, create and play together on one surface. Every touch screen table we build turns a corner of the room into a genuine collaboration zone.
- 10–20 touch points — a single touch screen table lets several children interact simultaneously
- Android or Windows, 2K or 4K, capacitive or infrared touch — configure the touch screen table to your project
- Cloud-based CMS to schedule content across every touch screen table
- Safety-first design — 360° rounded corners, tempered glass, eco materials on every touch screen table
International certifications
公元
聯邦通信委員會
RoHS
PSE
UL
(UL optional)
10–20 Touch Pointsmulti-touch by design
The maker behind your brand
Two manufacturing hubs. One quality standard.
Qtenboard operates two advanced production facilities in Shenzhen & Guangzhou — guaranteeing consistent quality, reliable supply, and scalable manufacturing for every touch screen table we ship to global partners. More milestones are documented in our Qtenboard brand news and touch screen table updates.
- 330,000 m² total production area for touch screen table assembly
- Automated production lines
- Daily production capacity: 200 units of touch screen table
- 48-hour aging tests on every unit
- International certifications — CE · FCC · RoHS · PSE · UL (optional)
- Flexible production models for every touch screen table order size
2005Founded
330,000 m²Manufacturing area
200Units produced daily
48 hPer-unit aging test
100+Countries served
Why interactive tables
Why classrooms, libraries and museums are going to the table
A touch screen table is not just a bigger tablet. It is a shared surface where several children work together at once — the same way they naturally play.
Deeper engagement, better retention
Interactive displays measurably lift engagement: Qtenboard research on digital learning environments reports up to 35% higher student engagement and information retention, alongside a 40% improvement in campus communication efficiency — results consistently observed on touch screen table deployments.
Social, language & motor skills
Turn-taking, discussion and teamwork are built into every activity on a touch screen table. Reaching, tapping and dragging on a horizontal surface supports fine motor development and suits visual, tactile and kinesthetic learners alike.
Inclusive & versatile beyond school
Height-friendly and wheelchair-accessible, a touch screen table removes the barrier of a screen per child. The same hardware adapts to museums, retail, restaurants, lobbies and hospitals — content is what changes, not the touch screen table itself.
Engagement and efficiency figures are as reported in Qtenboard's education solutions guide. Multi-touch collaboration and skill benefits reflect common touch screen table practice in early-years and special-education settings.
Core features
Everything a shared learning surface should be
Purpose-built for children, trusted by educators, and ready for your brand — this touch screen table is engineered around real classroom use.
10–20 Touch Points Support
Allowing several children to interact on the touch screen table simultaneously.
多種設計顏色
Each touch screen table is available in white, green, red, blue, or customized colors.
安全環保材料
Made with internationally certified, non-toxic, odor-free materials on every touch screen table.
靈活的操作系統
Android or Windows OS on the same touch screen table — choose the platform that fits your software stack.
豐富的教育內容
Built-in children's games and multi-subject learning apps; the touch screen table comes pre-installed with Google, Chrome, and Play Store for additional apps.
堅固和安全的設計
The touch screen table features 360° rounded corners to prevent injuries, and is waterproof, heat-resistant, and explosion proof.
Product highlights
Built tough. Displayed brilliant.
Hardware details that decide how long a touch screen table survives daily use in public spaces.
6mm Tempered Glass
Effectively prevents the touch screen table from breaking.
HD & UHD顯示屏
The touch screen table offers 2K (1920×1080 FHD) or 4K (3840×2160 UHD) resolutions.
連接選項
The touch screen table supports dual-band Wi-Fi, LAN, Bluetooth, 3G/4G, and other network configurations according to your requirements.
多語言支持
The touch screen table supports multiple languages, making it accessible to users from different regions.
基於雲的CMS控制
Manage and schedule educational content across multiple touch screen table units.
Easily update games, learning apps, and multimedia, track usage logs, monitor devices in real-time, assign user roles, and schedule content for different times or age groups on every touch screen table.

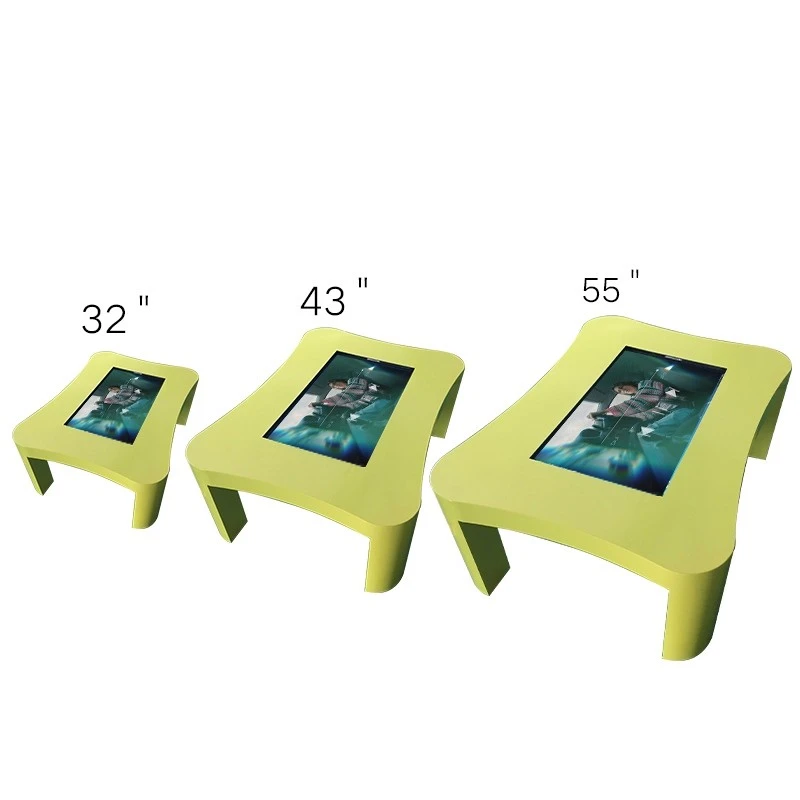

多種樣式和配置
The touch screen table is available in a range of sizes, colors, and designs, offering flexible options to meet different classroom, library, or activity space requirements.
How it works
From unboxing to multi-touch in three steps
One administrator can run an entire room of touch screen table units from a browser.
Drop in your content
Upload games, learning apps, videos and multimedia to the cloud CMS — or load built-in content with Google, Chrome and Play Store pre-installed on the touch screen table.
Schedule it
Assign content to specific touch screen table units, time slots, or age groups. Set role-based access and let the system switch programs automatically throughout the day.
Let them play
Up to 20 touch points on the touch screen table respond instantly. Monitor device status in real time, track usage logs, and push OTA updates from anywhere.
OEM options
Configure it your way
Pick the resolution, chipset, touch technology, system and finish that fit your market — every touch screen table is built to order.

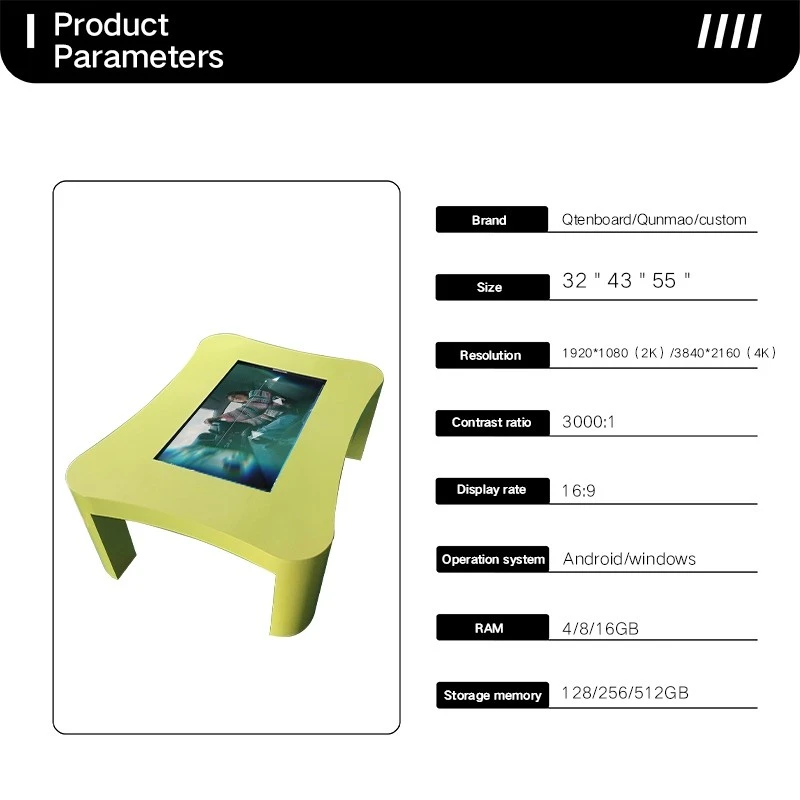

Technical specifications
Specs that survive real classrooms
The following technical parameters of this touch screen table are based on the 55-inch QM-C55XJ-ZM model. If you need technical parameters for other touch screen table sizes, please contact Qtenboard.
| 顯示參數 | |
| 品牌 | Qtenboard |
| 型號 | QM-C55XJ-ZM |
| 屏幕尺寸 | 55英寸 |
| 分辨率 | 1920×1080 (2K); 3840×2160 (4K) |
| 視角 | 178° |
| 對比度 | 3000:1 / 4500:1 |
| 顯示尺寸 | 1208.8 × 679.6 mm (H×V) |
| 顯示速率 | 16:9 / 9:16 |
| 後燈 | LED指示燈 |
| 亮度 | ≥300 / 400 / 500 cd/㎡ |
| 刷新率 | 60 / 120 Hz |
| 顏色 | 16.7M (8-bit) / 1.07B (10-bit) |
| System configuration — Android | |
| 操作系統 | Android |
| 版本 | 9.0 / 11.0 / 13.0 / 14.0 / 16.0 |
| CPU | Quad/Octa-core A55, Quad-core A53+A73, Hybrid Quad A53 + A72 |
| GPU | Mali-G31 |
| RAM | 1 / 2 / 4 / 8 GB |
| 存儲內存 | 8 / 16 / 32 / 64 / 128 GB |
| 接口 | HDMI ×1 (2.1, 4K×2K@60Hz input), USB ×2 |
| 音頻接口 | 3.5 mm ear jack ×1 |
| 網絡 | 1 pc, 10M/100M/1000M adaptive Ethernet |
| WiFi & Bluetooth | Built-in WiFi (2.4G single-signal) & BT 4.2 / 5.0 / 5.4 |
| 3G/4G | 可選 |
| System configuration — Windows | |
| 操作系統 | Windows 10/11 |
| 版本 | Intel i5 / i7 |
| RAM | 4G / 8G / 16G |
| SSD | 128G / 256G / 512G |
| 接口類型 | DC×1, USB×4, RJ45×1, Audio×1, VGA×1, HDMI×1 |
| System functions | |
| 解碼能力 | Supports 2K/4K video and picture decoding and playback |
| 軟件應用 | Supports installing third-party software |
| 語言 | English and other languages |
| 開機動畫 | Supports customization |
| 紅外遙控 | Operate the system by remote control |
| 音頻功能 | Left/right channel output, built-in dual 8Ω power amplifier |
| Power on/off | Remote control / timing / network wake-up / self-start |
| 系統授權 | Allows root permission and customized software development |
| 鼠標模式 | Supports wired/wireless mouse or keyboard |
| 系統更新 | Supports local and remote upgrade |
| 播放模式 | Audio: MP3, WMA, WAV, APE, FLAC, AAC, OGG, M4A, 3GPP etc. Picture: JPG, BMP, PNG etc. Video: AVI, RM, RMVB, MKV, WMV, MOV, MP4 etc. |
| 打字 | Standard Android keyboard as default; third-party keyboards installable |
| 更多功能 | Follow the instruction manual/video or contact the supplier |
| Software functions (CMS optional) | |
| 後台支持 | Web/mobile (local network / WAN) |
| 播放模式 | Networking / standalone |
| 播放支持 | Video / picture / subtitles / PPT / web / weather / clock mixed playback |
| 智能拼接 | Supports custom playing modes spliced as configured |
| 定時功能 | Supports scheduling custom programs in time periods |
| 終端管理 | Administrators can create and modify accounts for level-to-level administration |
| 更多功能 | Follow the instruction manual/video or contact the supplier |
| Machine parameters | |
| 顏色 | 黑色/白色/其他 |
| 框架材料 | 鋁 (氧化拉絲) |
| 閥體材料 | Metal cold-rolled steel plate (metal coating) |
| 表面材料 | 3 mm tempered glass (physical) |
| 產品尺寸 | 1650 × 860 × 510 mm (for reference only) |
| 包裝尺寸 | 1750 × 960 × 660 mm (for reference only) |
| 包裝材料 | Neutral carton / wooden frame / wooden box |
| Net / gross weight | 53 kg / 55 kg (for reference only) |
| 安裝方式 | Wall mount / embedding / hang / bracket |
| 電氣特性 | |
| Scenarios | 室內 |
| 額定電壓 | AC 110–220V |
| 備用電源 | ≤1 W |
| 額定功率 | ≤105 W |
| Suitable environment | Temperature −0℃~55℃ / humidity 10%RH~90%RH |
| Storage environment | Temperature −5℃~60℃ / humidity 10%RH~90%RH |
* Technical parameters above are for the 55-inch QM-C55XJ-ZM reference touch screen table model. For detailed specs of other sizes, please contact Qtenboard.
應用程序
One table, many rooms
Wherever people gather around a shared space, a touch screen table turns it into a hands-on experience.
Classrooms & Learning Centers
Engage multiple children simultaneously with interactive lessons and educational games on one touch screen table.
Libraries & Study Areas
Encourage reading, creativity, and exploration with multimedia content on the touch screen table.
Museums & Activity Zones
Enhance exhibits with interactive quizzes and hands-on learning experiences built around the touch screen table.
Also deployed in:
零售商店超市購物中心
Airports & stations餐廳醫院
企業遊說酒店
OEM/ODM
Customization capabilities
From logo to launch — Qtenboard builds the touch screen table your brand is known for.
| 功能 | 描述 |
|---|---|
| 品牌標誌和啟動動畫 | Personalize your touch screen table with custom logos and startup animations for full brand identity. |
| UI/OS深度定製 | Tailor system interface, themes, and functionality of the touch screen table to match your brand's unique requirements. |
| 底盤和模具修改 | Modify device enclosures or design new molds for differentiated touch screen table appearance. |
| 包裝設計 | 定製包裝,以滿足您的品牌和全球運輸需求。 |
| SN跟蹤和批量生產 | Each touch screen table is tracked with a unique serial number to ensure quality and manage after-sales efficiently. |
| 白標服務 | Offer touch screen table products ready to market under your own brand name. |
| CKD/SKD Supply Capability | 靈活的裝運選項: 完整,半擊倒,或完全組裝的單位。 |
| 軟件開發和SDK/API支持 | Integrate third-party applications or develop proprietary software to meet specific touch screen table project needs. |

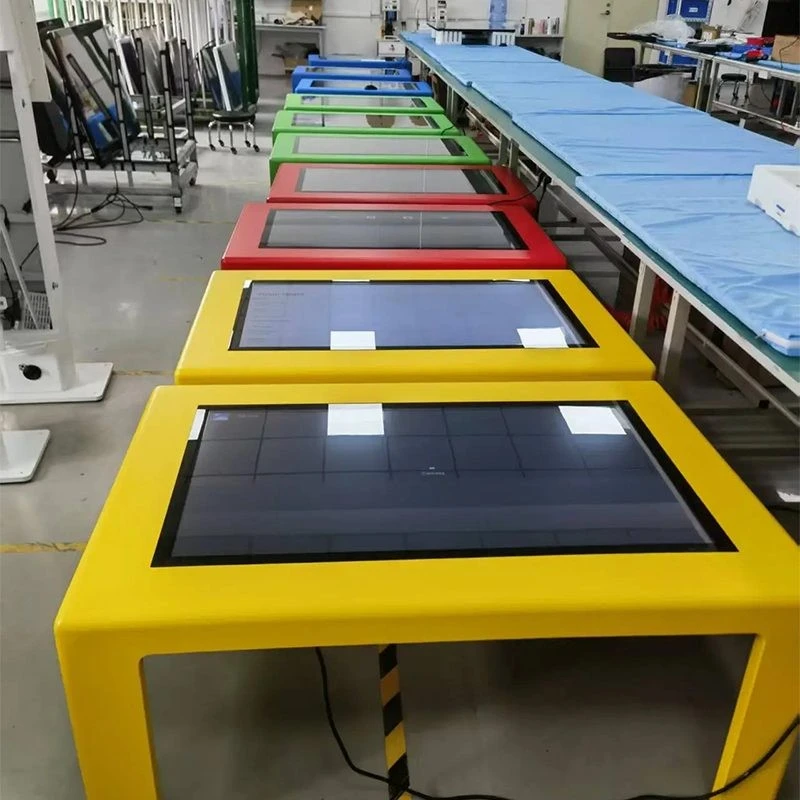

Factory overview
Where every table is born
330,000 m² of automated production across Shenzhen and Guangzhou — the floor where every touch screen table is assembled and tested.
Factory Entrance — Modern and spacious facility designed for high-efficiency touch screen table production.
Production Line — Fully automated assembly lines for consistent touch screen table quality output.
Quality Control — Rigorous testing ensures reliable touch screen table units for global clients.
Warehouse & Logistics — Organized storage and efficient shipping for worldwide touch screen table distribution.
Global cases
Trusted in 100+ countries
From Bangkok retail to Helsinki education — Qtenboard touch screen table and display hardware runs around the clock, worldwide.
Thailand — Retail Stores & Fashion Chains: high-impact promotional displays widely deployed in global retail chains.
HK CN — Supermarket & Hypermarket Chains: stable, long-hour signage for daily promotions and in-store navigation.
Australia — Shopping Mall Commercial Areas: large-format displays for brand advertising and tenant promotions.
UK — Airports & Train Stations: reliable 24/7 operation in high-traffic transportation hubs.
USA — QSR & Restaurant Menu Boards: dynamic digital menus and promotional screens for franchise chains.
UZ — Hospitals & Public Service Centers: clear information display for navigation, announcements, and service queues.
Brazil — Corporate Lobby & Office Buildings: professional signage for branding, visitor information, and event display.
Japan — Hotels & Hospitality Groups: elegant lobby displays for welcome messages and promotional content.
Finland — Education & Exhibition Areas: used for campus announcements, exhibition displays, and touch screen table information boards.
支持
End-to-end support for global brand partners
Qtenboard offers full-cycle pre-sales and after-sales services, ensuring smooth touch screen table project execution and long-term collaboration for international brands and distributors.
售前支持
- 定製諮詢 — Understand client needs and propose tailored touch screen table and digital signage solutions.
- 概念驗證演示 — Provide demo units or mock-ups to validate touch screen table solutions before purchase.
- 兼容性和集成建議 — Evaluate system compatibility and recommend optimal hardware/software setup for your touch screen table project.
售後支持
- 全球技術支持 -通過多個渠道提供24/7幫助,包括電子郵件,聊天和視頻通話。
- 遠程系統監控 — Track touch screen table status, performance, and troubleshoot issues proactively.
- OTA Updates & Feature Upgrades -通過基於雲的固件和軟件增強功能使設備保持最新狀態。
- 備件和快速更換 -用於快速解決硬件問題的預存組件。
- 物流和保修管理 — Coordinated global shipping, customs handling, and warranty tracking for hassle-free touch screen table operations.
常見問題
Frequently asked questions
Common questions buyers ask before ordering a touch screen table.
How can I manage content across multiple tables?
Tables support cloud-based CMS, allowing centralized content updates, scheduling, and monitoring of every touch screen table from any location.
How customizable is the user interface?
The UI of the touch screen table can be tailored for different age groups, learning themes, or branding purposes.
How easy is it to relocate the table between rooms?
Tables feature detachable legs and portable design, making movement and reinstallation of the touch screen table straightforward.
Can I connect external devices?
Yes, the touch screen table supports HDMI, USB, and Bluetooth peripherals for additional content or input devices.
Bring the table to your classroom or brand
Tell us your project — size, system, colors, branding. We'll spec a touch screen table solution and quote it within one business day.
- 電子郵件: Info@qtenboardglobal.com
- WhatsApp: +86 18124715048
- 網站: www.qtenboardglobal.com
CE · FCC · RoHS · PSE · UL (optional) — OEM / ODM / White Label / CKD-SKD
