技術規格:
Qtenboard – High Brightness Tilted Window Digital Signage Manufacturer & Top Hardware Supplier in China
Qtenboard數字標牌
As a leading high brightness tilted window digital signage manufacturer and hardware supplier in China, Qtenboard operates two advanced production facilities in Shenzhen & Guangzhou to guarantee consistent quality, reliable supply, and scalable manufacturing for global partners. Our high brightness tilted window digital signage portfolio is engineered for maximum visibility in storefront and semi-outdoor environments.
- 330,000平方米總生產面積 for high brightness tilted window digital signage manufacturing
- 自動化生產線
- 日生產能力: 200台 of high brightness tilted window digital signage
- 48小時老化試驗
- 國際認證 — CE · FCC · RoHS · PSE · UL (optional)
- 靈活的生產模式
Core Features of High Brightness Tilted Window Digital Signage
Product Highlights of High Brightness Tilted Window Digital Signage
For deeper insight into deployment planning, read our high brightness tilted window digital signage guide. For broader commercial display planning, see our high brightness display deployment insights.
OEM Option for High Brightness Tilted Window Digital Signage
技術規格
The following technical parameters are based on a 32-inch QM-3230CN high brightness tilted window digital signage model. If you need technical parameters for other sizes, please contact Qtenboard.
| Display Parameter | |
| 品牌 | Qtenboard |
| 型號 | QM-3230CN |
| 屏幕尺寸 | 32英寸 |
| 分辨率 | 1920*1080, 2K |
| 視角 | 178° |
| 對比度 | 3000:1 / 4500:1 |
| 縱橫比 | 16:9 / 9:16 |
| 背光 | LED指示燈 |
| 亮度 | 450cd/m² (Optional 350cd/m² and 700cd/m²) |
| Refresh Rate | 60 / 120 Hz |
| 顏色深度 | 16.7M (8-bit) / 1.07B (10-bit) |
| 系統配置 | |
| 操作系統 | Android |
| 版本 | 9.0 / 11.0 / 13.0 / 14.0 / 16.0 |
| CPU | Quad/Octa-core A55, Quad-core A53+A73, Hybrid Quad A53 + A72 |
| RAM | 1 / 2 / 4 / 8 GB |
| Storage Memory | 8 / 16 / 32 / 64 / 128 GB |
| 接口 | HDMI In ×1, USB 3.0 ×2, TF card ×1, RJ45 ×1 |
| Audio Interface | 3.5mm ear jack ×1 |
| 網絡 | 1pc, 1000M |
| Wi-Fi & Bluetooth | Built-in Wi-Fi (2.4G/5G single-signal) & BT 4.2 / 5.0 / 5.4 |
| 3G/4G | 可選 |
| 系統功能 | |
| 解碼能力 | 支持2/4k視頻和圖片解碼和播放 |
| Software Application | 支持安裝第三方軟件 |
| 語言 | English and other languages |
| 開機動畫 | 支持自定義 |
| Infrared Remote Control | 通過遠程控制操作系統 |
| Audio Function | 支持左/右聲道輸出,內置雙8Ω 功率放大器 |
| Power On/Off | Remote control / timing / network wake-up / self-start |
| System Authorization | 允許root權限並自定義軟件開發 |
| Mouse Mode | 支持有線/無線鼠標或使用鍵盤 |
| System Update | 支持本地和遠程升級 |
| Play Mode | Audio: MP3, WMA, WAV, APE, FLAC, AAC, OGG, M4A, 3GPP etc. Picture: JPG, BMP, PNG etc. Video: AVI, rm, rmvb, MKV, WMV, MOV, MP4 etc. |
| 打字 | Standard Android keyboard as default, can install the third-party typing |
| More Functions | 遵循說明手冊/視頻或聯繫供應商 |
| Software Function (CMS Optional) | |
| Background Support | Web/mobile (local network/WAN) |
| Play Mode | Networking / standalone |
| Play Support | Video/picture/subtitles/PPT/web/weather/clock mixture to play |
| Smart Splicing | 支持自定義播放模式拼接為設置 |
| Timing Function | 支持設置播放自定義程序的時間段 |
| Terminal Administration | Administrator can create and modify account for level-to-level administration |
| More Functions | 遵循說明手冊/視頻或聯繫供應商 |
| Machine Parameter | |
| 顏色 | 黑色/白色/其他 |
| 框架材料 | 鋁 (氧化拉絲) |
| 閥體材料 | Metal cold-rolled steel plate (metal coating) |
| Surface Material | 3毫米鋼化玻璃 (物理) |
| Packing Material | 中性紙箱/木製框架/木箱 |
| 安裝 | Wall mount / Embedding / Hanging / Bracket |
| Electrical Features | |
| Scenarios | 室內 |
| 額定電壓 | AC 110–220V |
| Standby Power | ≤1W |
| Rated Power | ≤85W |
| Operating Environment | Temperature 0℃~55℃ / humidity 10%RH~90%RH |
| 存儲環境 | Temperature -5℃~60℃ / humidity 10%RH~90%RH |
Application of High Brightness Tilted Window Digital Signage

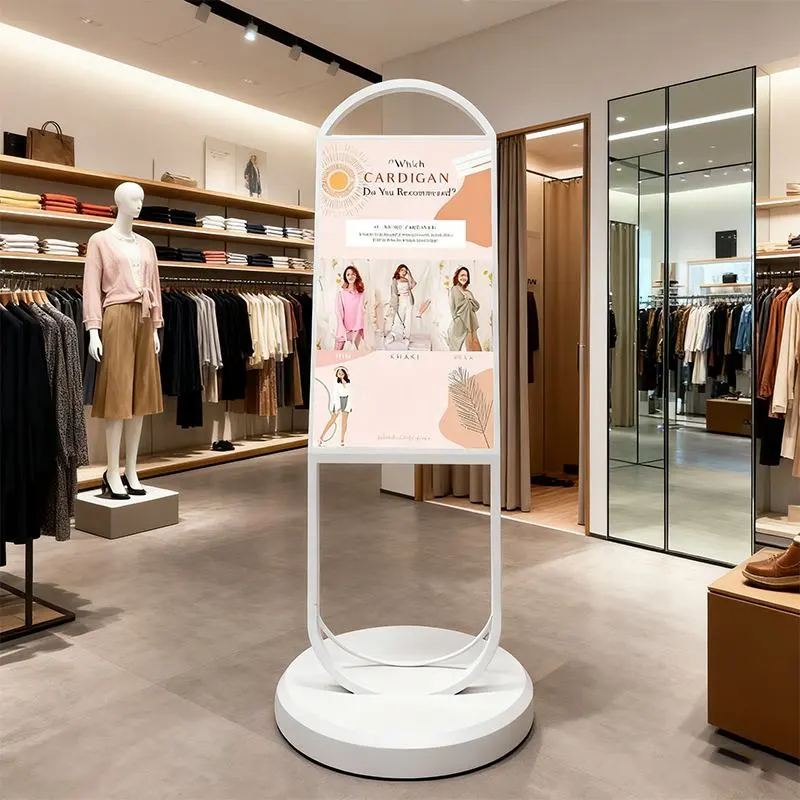

Retail window displays powered by high brightness tilted window digital signage to showcase new arrivals and promotions while attracting passing foot traffic.
In shopping malls and brand stores, high brightness tilted window digital signage highlights featured products and guides customers into the store.
Pop-up stores and temporary exhibitions where flexible placement and quick setup of high brightness tilted window digital signage are required.
Explore more tilted window digital signage solutions for retail and see how they perform in real storefront environments. For additional guidance on window-facing display strategies, review our commercial window display application notes.
OEM/ODM Customization Capabilities
Qtenboard supports full OEM/ODM customization for high brightness tilted window digital signage projects, from hardware configuration to branding and packaging. As a dedicated high brightness tilted window digital signage hardware supplier, we tailor each unit to meet specific market requirements.
| 功能 | 描述 |
|---|---|
| 品牌標誌和啟動動畫 | Personalize your high brightness tilted window digital signage with custom logos and startup animations for full brand identity. |
| UI/OS深度定製 | Tailor system interface, themes, and functionality to match your brand’s unique requirements for high brightness tilted window digital signage. |
| 底盤和模具修改 | Modify device enclosures or design new molds for differentiated high brightness tilted window digital signage product appearance. |
| 包裝設計 | Custom packaging to suit your branding and global shipping needs for high brightness tilted window digital signage. |
| SN跟蹤和批量生產 | Each high brightness tilted window digital signage unit tracked with a unique serial number to ensure quality and manage after-sales efficiently. |
| 白標服務 | Offer high brightness tilted window digital signage ready to market under your own brand name. |
| CKD/SKD Supply Capability | Flexible shipment options for high brightness tilted window digital signage: complete, semi-knocked down, or fully assembled units. |
| 軟件開發和SDK/API支持 | Integrate third-party applications or develop proprietary software for high brightness tilted window digital signage projects. |
工廠概況
Qtenboard's dual factories in Shenzhen and Guangzhou mass-produce high brightness tilted window digital signage under strict quality control, from automated assembly to 48-hour aging tests.
Factory Entrance — Modern and spacious facility designed for high-efficiency high brightness tilted window digital signage production.
Production Line — Fully automated assembly lines for consistent high brightness tilted window digital signage quality output.
Quality Control — Rigorous testing ensures reliable high brightness tilted window digital signage for global clients.
Warehouse & Logistics — Organized storage and efficient shipping of high brightness tilted window digital signage for worldwide distribution.
全球案例
High brightness tilted window digital signage from Qtenboard is deployed across retail, transportation, hospitality, and public service projects worldwide.
Thailand—Retail Stores & Fashion Chains — High-impact promotional high brightness tilted window digital signage widely deployed in global retail chains.
HK CN—Supermarket & Hypermarket Chains — Stable, long-hour high brightness tilted window digital signage for daily promotions and in-store navigation.
Australia—Shopping Mall Commercial Areas — Large-format high brightness tilted window digital signage for brand advertising and tenant promotions.
UK—Airports & Train Stations — Reliable 24/7 high brightness tilted window digital signage operation in high-traffic transportation hubs.
USA—QSR & Restaurant Menu Boards — Dynamic digital menus and promotional high brightness tilted window digital signage for franchise chains.
UZ—Hospitals & Public Service Centers — Clear high brightness tilted window digital signage for navigation, announcements, and service queues.
Brazil—Corporate Lobby & Office Buildings — Professional high brightness tilted window digital signage for branding, visitor information, and event display.
Japan—Hotels & Hospitality Groups — Elegant lobby high brightness tilted window digital signage for welcome messages and promotional content.
Finland—Education & Exhibition Areas — Used for campus announcements, exhibition displays, and information boards powered by high brightness tilted window digital signage.
為全球品牌合作夥伴提供端到端支持
Qtenboard offers full-cycle pre-sales and after-sales services for high brightness tilted window digital signage, ensuring smooth project execution and long-term collaboration for international brands and distributors.
售前支持
- 定製諮詢 — Understand client needs and propose tailored high brightness tilted window digital signage solutions.
- 概念驗證演示 — Provide demo units or mock-ups to validate high brightness tilted window digital signage solutions before purchase.
- 兼容性和集成建議 — Evaluate system compatibility and recommend optimal hardware/software setup for high brightness tilted window digital signage.
售後支持
- 全球技術支持 — 24/7 assistance via multiple channels, including email, chat, and video calls for high brightness tilted window digital signage projects.
- 遠程系統監控 — Track high brightness tilted window digital signage device status, performance, and troubleshoot issues proactively.
- OTA Updates & Feature Upgrades — Keep high brightness tilted window digital signage devices up-to-date with cloud-based firmware and software enhancements.
- 備件和快速更換 — Pre-stocked components for quick resolution of high brightness tilted window digital signage hardware issues.
- 物流和保修管理 — Coordinated global shipping, customs handling, and warranty tracking for hassle-free high brightness tilted window digital signage operations.
Read the latest digital signage industry news and buying insights from Qtenboard.
常見問題
Frequently asked questions about our high brightness tilted window digital signage:
Contact Qtenboard for High Brightness Tilted Window Digital Signage
Looking for a reliable high brightness tilted window digital signage supplier? Our team supports your high brightness tilted window digital signage project with OEM/ODM customization, bulk pricing, and detailed technical specifications.
電子郵件: Info@qtenboardglobal.com
WhatsApp: +86 18124715048
