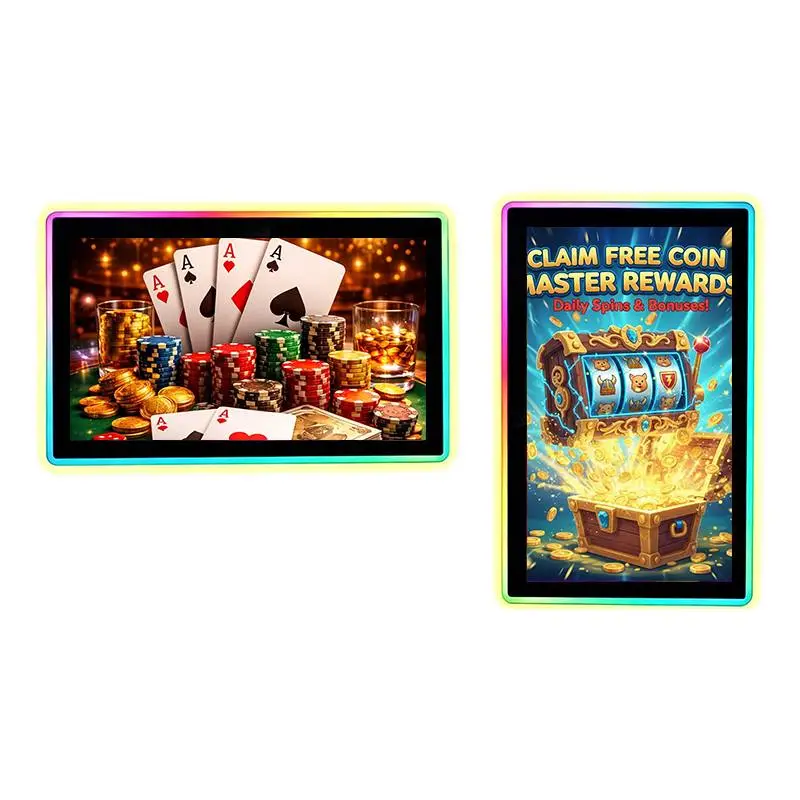

RGB LED Bezel Gaming Touch Monitor 10-Point Capacitive Touch Screen For Slot Arcade Machines
وصف المنتج:
This industrial planar touch monitor is integrated with full-color programmable RGB LED ambient light bezel, supporting dynamic running water, gradient and chasing light effects. Adopts industrial-grade LCD panel and high-precision 10-point projected capacitive touch, with dual-system compatibility of Windows or Android optional.
It fully conforms to universal 3M touch protocol of global gaming equipment, perfectly embedded for slot machines, arcade game consoles and lottery kiosks. The whole device is built with industrial stable circuit, high-life backlight and anti-interference design for long-time continuous operation in amusement venues.
We provide full customization on light effect programs, screen sizes, hardware interfaces and embedded installation structure for global B-end amusement equipment manufacturers and bulk distributors.
-
نطاق التطبيق:
المواصفات الفنية:
مقدمة الشركة
As a professional original manufacturer focusing on industrial touch display solutions with over 10 years of R&D and mass production experience, Qtenboard specializes in customized gaming displays, LED bezel touch screens, and embedded industrial monitors. We own a complete in-house production chain from LCD panel lamination, touch glass bonding, LED light strip embedding to system firmware debugging, providing stable, high-reliability customized display products for global B-end distributors and amusement equipment manufacturers. All products pass strict aging test, long service life test and protocol compatibility verification before delivery.
- Full In-House Production Chain: Independent complete production workshop covering touch glass cutting, LCD module assembly, RGB light effect program development, system firmware adaptation and finished product aging test.
- System & Protocol R&D Capability: Self-built R&D team for Android & Windows system adaptation, 3M touch protocol customization, RGB dynamic light effect secondary development.
- Global B-End Service Experience: Long-term stable supply for North America, Europe, Southeast Asia amusement machine factories, with mature bulk order delivery and overseas after-sales system.
- Strict Quality Control System: 100% pre-delivery 72-hour continuous aging test, industrial grade panel adaptation, anti-interference circuit design.
مزايا المنتج
Built-in surrounding LED light strip supports gradient, chasing, flowing and running light dynamic effect, customizable light program for brand scene display.
Industrial projected capacitive touch, high response speed, anti-mis-touch, supports smooth multi-point operation under commercial high-frequency use.
Fully matches global mainstream amusement gaming motherboard protocol, plug-and-play for slot and arcade machine embedded installation.
High brightness, high contrast, wide viewing angle industrial screen, stable display under long-time 24/7 continuous operation.
Rich reserved interfaces including HDMI, USB, RS232, RJ45, for external device expansion and peripheral hardware access.
Ultra-narrow bezel embedded structure, perfectly fits cabinet inlay installation of gaming machines and commercial kiosks.
Surface covered with high-hardness tempered glass, wear-resistant, explosion-proof, anti-collision for frequent touch operation.
Realize centralized management of multiple screens in the same site via network, convenient for background operation maintenance.
Accept shell structure modification, interface definition adjustment, system firmware customized development for bulk brand orders.
المعايير الفنية
| نموذج | QM-2234NH/QM-2434NH/QM-2734NH/QM-3234NH/ QM-4334NH/QM-5034NH/QM-5534NH |
|---|---|
| نوع لوحة | شاشة LCD صناعية |
| المقاسات | 22" / 23.6" /27" / 32" / 43"/ 50" / 55" |
| نسبة العرض إلى الارتفاع | 9:16 / 16:9 |
| نوع اللمس | 10 نقاط لمس بالسعة المتوقعة |
| سطوع الشاشة | 350 cd/㎡ (نسخة سطوع عالية قابلة للتخصيص متاحة) |
| نسبة التباين | 1200:1 |
| زاوية الرؤية | زاوية عرض كاملة (89 درجة/89 درجة/89 درجة/89 درجة) |
| وقت الاستجابة | ≤ 5 مللي ثانية |
| RGB Light Bezel | شريط LED RGB قابل للبرمجة بالألوان الكاملة |
| Supported OS | Optional Windows 10/11 or Android 8.0 (Single OS only) |
| بروتوكول اللمس | بروتوكول قياسي 3 أمتار ، اتصال USB باللمس |
| Hardware Interface | HDMI, USB, RS232, RJ45 Ethernet, Audio Out |
| مزود طاقة | DC 12V Wide Voltage Input |
| Glass Surface | High Hardness Explosion-Proof Tempered Glass |
| Operating Temperature | 0℃ ~ 50℃ |
| Storage Temperature | -20℃ ~ 60℃ |
| خدمة الحياة | ≥50000 Hours Continuous Working |
| طريقة التثبيت | Embedded Cabinet Flush Installation |
سيناريوهات التطبيق
Ideal for casino slot game cabinets to equip interactive operation screens with dynamic RGB ambient light bezel.
Ideal for arcade amusement game machines to install embedded capacitive touch displays with running LED light borders.
Ideal for indoor lottery kiosks and entertainment terminals to adopt programmable RGB framed touch panels.
Pre-Sales & After-Sales Service
- Customized overall display solution design according to customer cabinet structure, system protocol and function requirements.
- Free product parameter consultation, interface matching verification and application scenario feasibility analysis.
- Support sample production and performance test before bulk mass order to confirm product adaptation.
- Customization of RGB light effect program, system firmware, shell appearance and hardware interface definition.
- 1-Year Quality Warranty: We provide 1-year product quality warranty for non-artificial damaged parts.
- Professional remote technical support is exclusively available within the warranty period.
- Global flexible logistics support, including sea freight, air freight and express delivery with shockproof safe packaging.
- 24 working hours fast online response for all technical inquiries and after-sales feedback.
فاق
A: Yes. This monitor is natively pre-adapted with universal 3M touch protocol, plug-and-play with most mainstream amusement gaming motherboards.
A: Yes. We support full customization of RGB light modes, color, speed, gradient and chasing effects.
A: Yes. We offer optional pre-installation of Windows or Android (single system only, no dual system switching).
A: The MOQ for customized size, light effect and interface is 10 units.
A: We provide 1-3 year quality warranty and remote technical support only within the warranty period.
